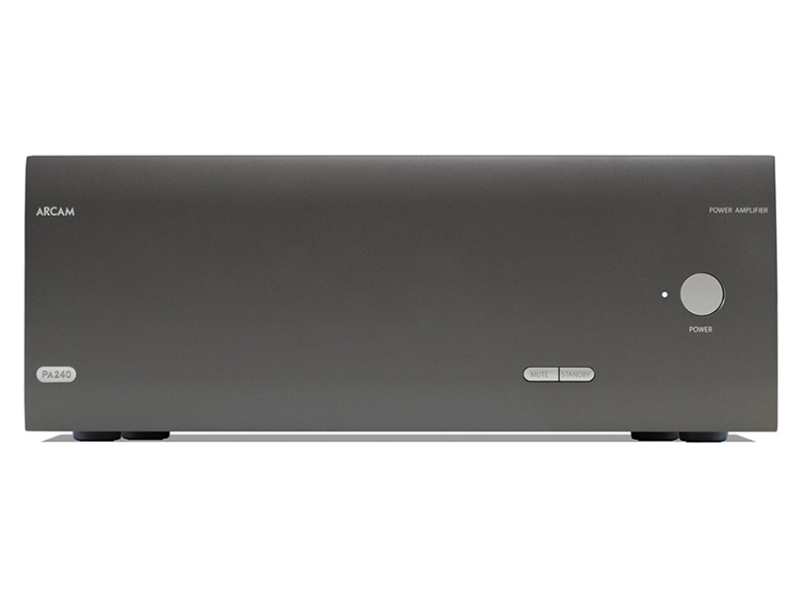

Arcam Class G 2 Channel Power Amplifier - PA240

SKU : PA240


Literature

Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

PRODUCT DETAILS

  • 2 Channel Power Amplifier
  • 2 x 225W Class G amplification (8ohm, 20Hz-20kHz, 0.2% THD)
  • 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
  • Class G amplification with 50W of class A operation
  • Toroidal transformer
  • Stereo, Dual Mono or Bridged operation

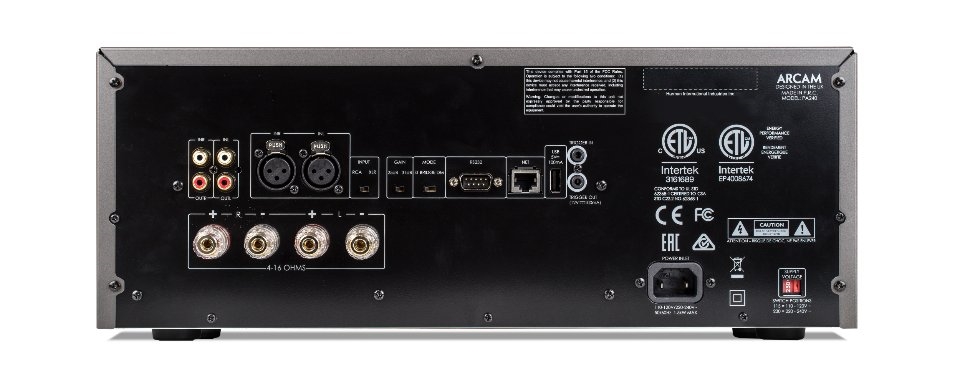

  • Ethernet, RS232 control
  • Switchable RCA or balanced XLR inputs
Continuous power output at 0.2% THD per channel
2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz790W
Harmonic distortion, 80% power, 8Ω at 1kHz0.001%
INPUTS
Input sensitivity 200W / 8Ω - RCA Type1.15V RMS
Input sensitivity 200W / 8Ω -XLR Type2.3V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω110dB
Input impedance10kΩ
Frequency response20 - 20kHz +/-0.05dB
General
Mains voltage110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby)<0.5W
Dimensions W x D x H (including feet, control knob and speaker terminals)433 x 425 x 177mm
Weight (net)18kg
Weight (packed) 19.7kg
