JBL L52 Classic 2-Way Bookshelf Loudspeaker - JBLL52CLASSICORG-Z

Category : Bookshelf Speakers
SKU : JBLL52CLASSICORG-Z


Literature

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the L52 Classic is a 5.25-inch (130mm) 2-way loudspeaker featuring JBL’s advanced acoustic technologies in combination with the award-winning retro-inspired style of its larger family members. The vintage design of the L52 Classic features a genuine walnut wood veneer cabinet and choice of Quadrex foam grilles. Beneath this iconic exterior is a loudspeaker built from modern acoustic components, delivering legendary JBL sound sure to please any music lover.

Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, burnt orange and dark blue

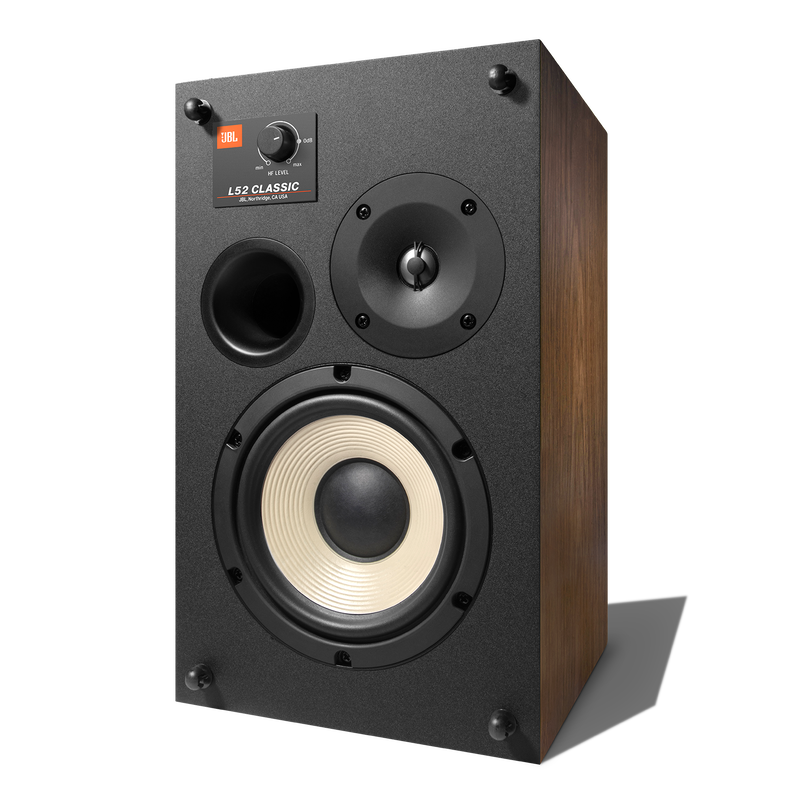

5.25-inch (130mm) cast-frame, white pure pulp cone woofer in bass-reflex design with front-firing tuned port.

Genuine satin walnut wood veneer.

0.75-inch (19mm) titanium dome tweeter mated to acoustic lens waveguide.

High-frequency level attenuator.

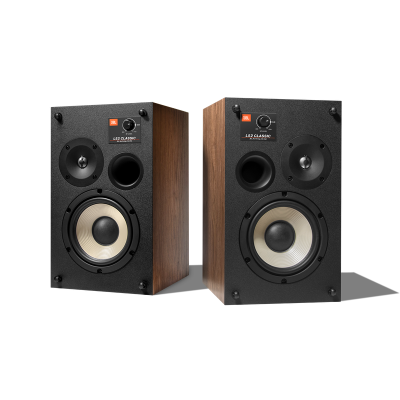

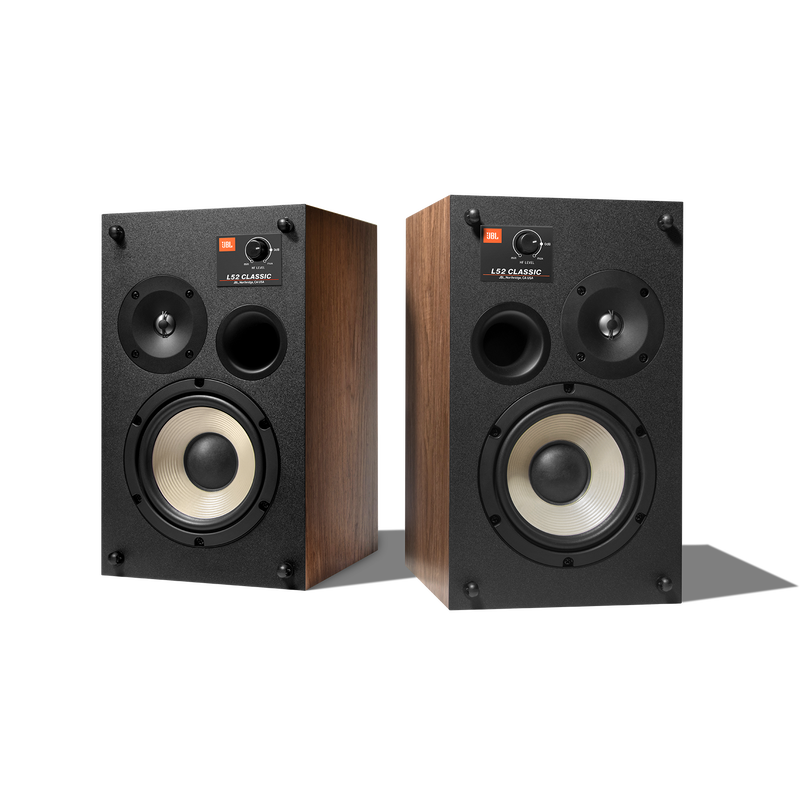

Mirror-imaged stereo pairs.

Dual threaded inserts for third party wall-mount brackets.

L52 Classic

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the L52 Classic is a 5.25-inch (130mm) 2-way loudspeaker featuring JBL’s advanced acoustic technologies in combination with the award-winning retro-inspired style of its larger family members. The vintage design of the L52 Classic features a genuine walnut wood veneer cabinet and choice of Quadrex foam grilles. Beneath this iconic exterior is a loudspeaker built from modern acoustic components, delivering legendary JBL sound sure to please any music lover.

General Specifications
Type2-way bookshelf loudspeaker
Low Frequency Driver5.25" (133mm) Pure Pulp cone woofer (JW135PW-4)
High Frequency Driver0.75" (20mm) Titanium dome tweeter (JT020TI1-4) with waveguide
Recommended Amplifier Power10 - 75 WRMS
Impedance4 Ohm
Loudspeaker Sensitivity85 dB/2.83Vm
Frequency Response47 Hz - 24 kHz (-6 dB)
Crossover Frequency2.8 kHz
EnclosureFront-ported bookshelf in satin walnut furniture-grade wood veneer

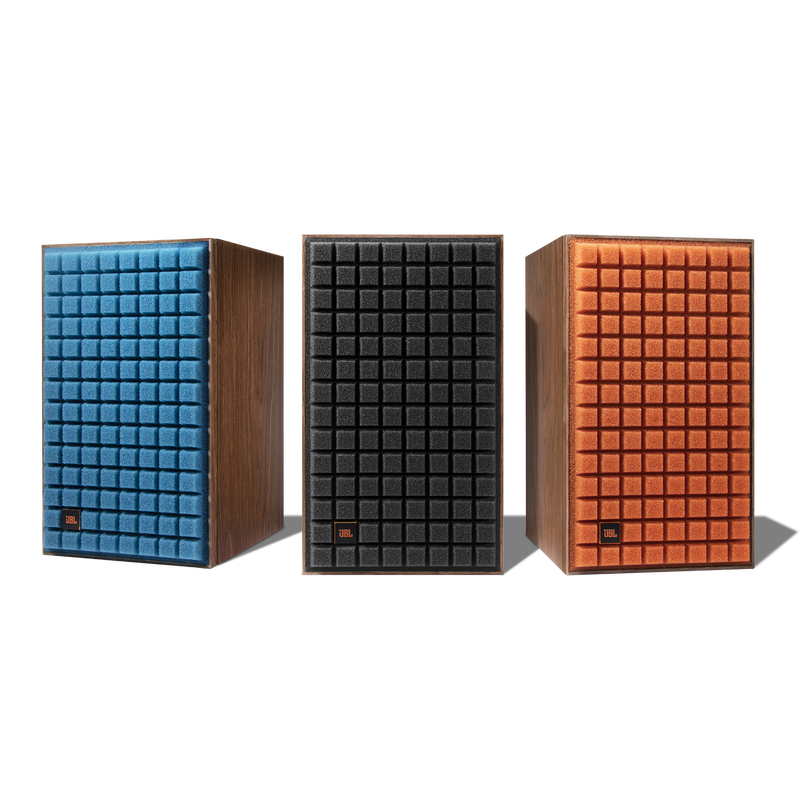

GrilleFoam Quadrex grille available in three colors
Dimensions with grille13" H x 7.74" W x 8.51" D (330.2mm x 196.6mm x 216.2mm)
ControlsHF level control

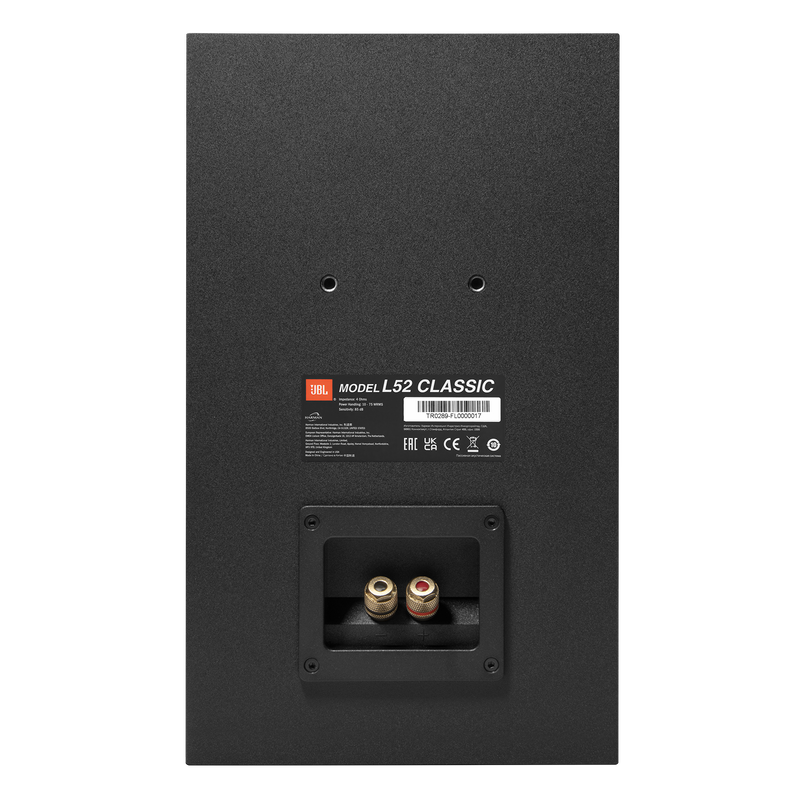

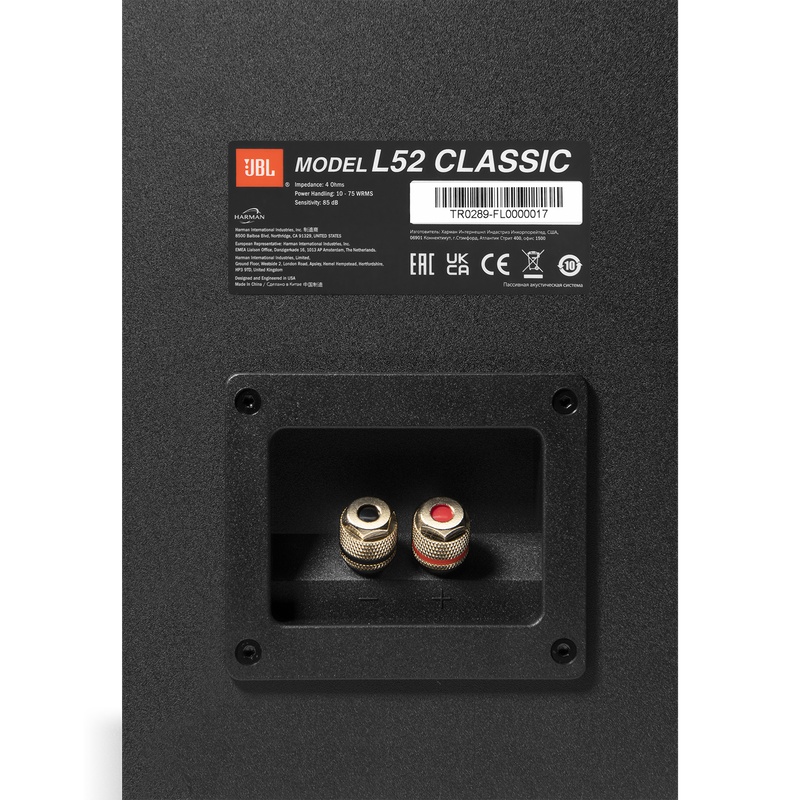

Input TypeGold-plated binding posts
Product Weight (Each)11 lbs. (5.0 kg)
Shipping Weight30.4 lbs. (13.8 kg)
Shipping Units of MeasureMirror-imaged stereo pair
Warranty5 Years
Recommended stand height24" (609 mm)
Wall bracket insert/spacingM6 x 1.0 thread, 12mm max screw length / spaced 2.64" (67mm) center-to-center
