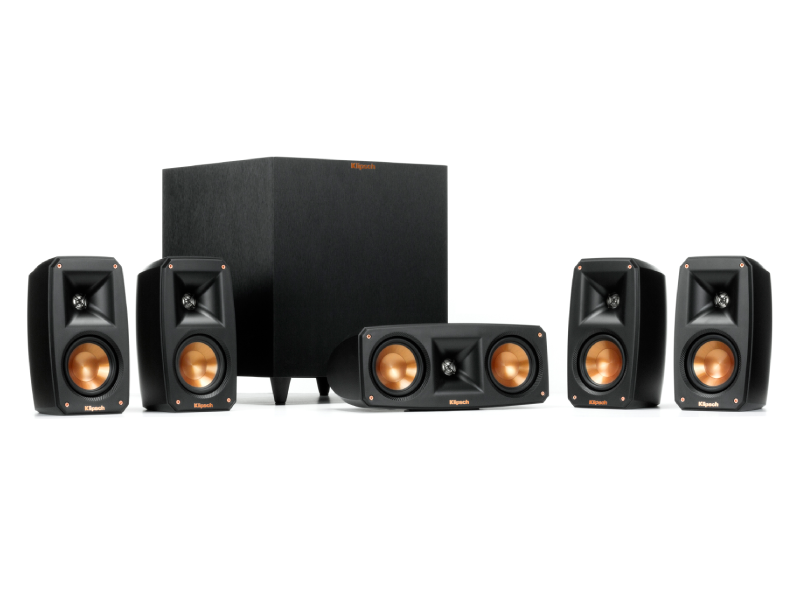

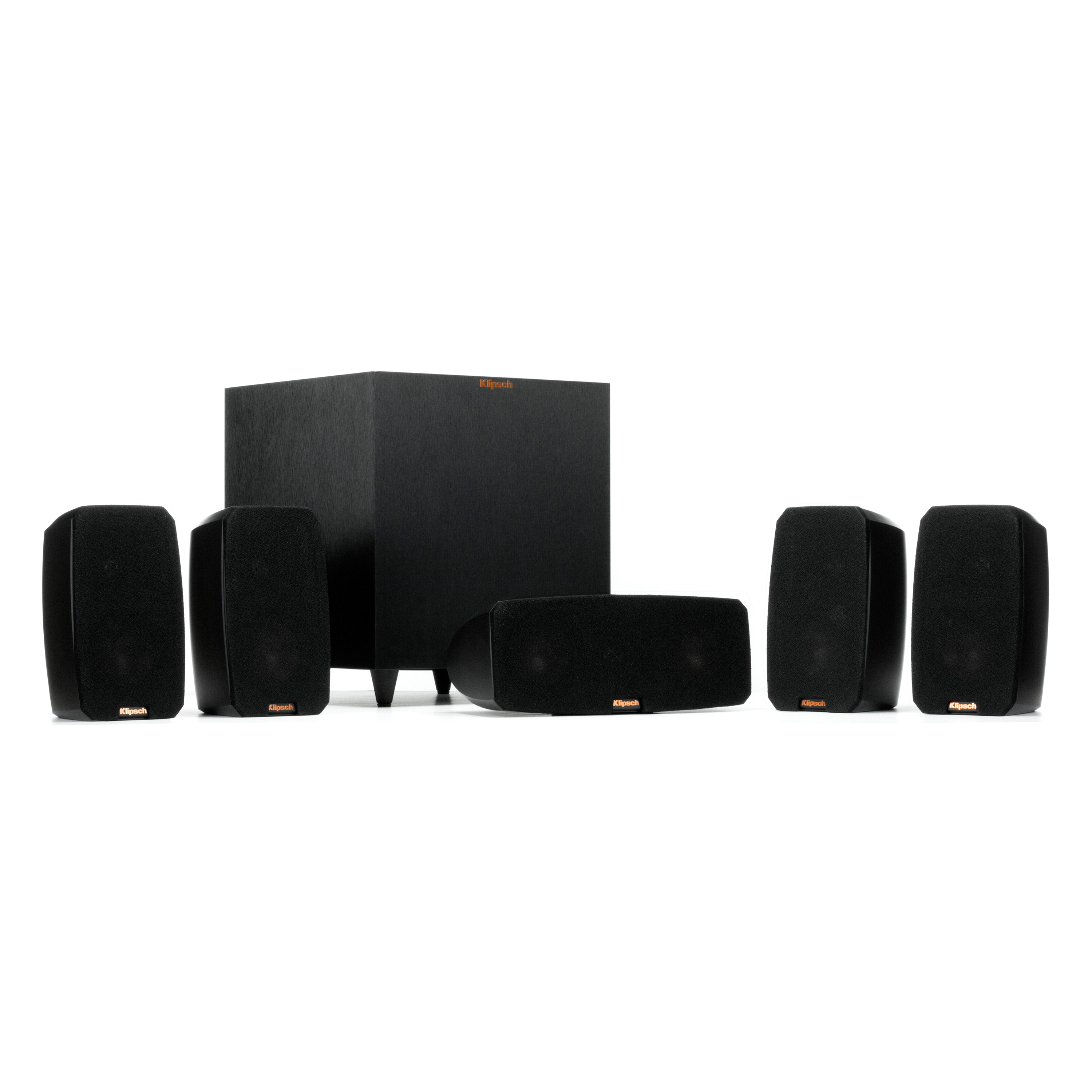

We've taken the premium materials and acoustic technology of our coveted Reference Series and designed a beautiful 5.1 surround sound system to pair with your favorite A/V receiver. Complete with a wireless subwoofer, the Reference Theater Pack brings the Klipsch cinematic sound into your home with an incredibly minimal footprint.
Features
- Flexible System Placement
- Wireless High Fidelity Subwoofer
- Cinematic Acoustics
- Spun Copper IMG Woofers
- Linear Travel Suspension Horn-Loaded Tweeters
CINEMATIC PERFORMANCE
The Reference Theater Pack delivers superior acoustic performance by leveraging Injection Molded Graphite (IMG) woofers. These exceptionally lightweight cones are extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.
A Linear Travel Suspension (LTS) tweeter minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.
HORN-LOADED POWER
Our exclusive Tractrix® Horn Technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.
WIRELESS, ROBUST BASS

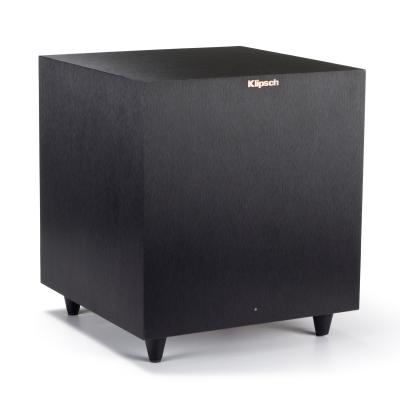

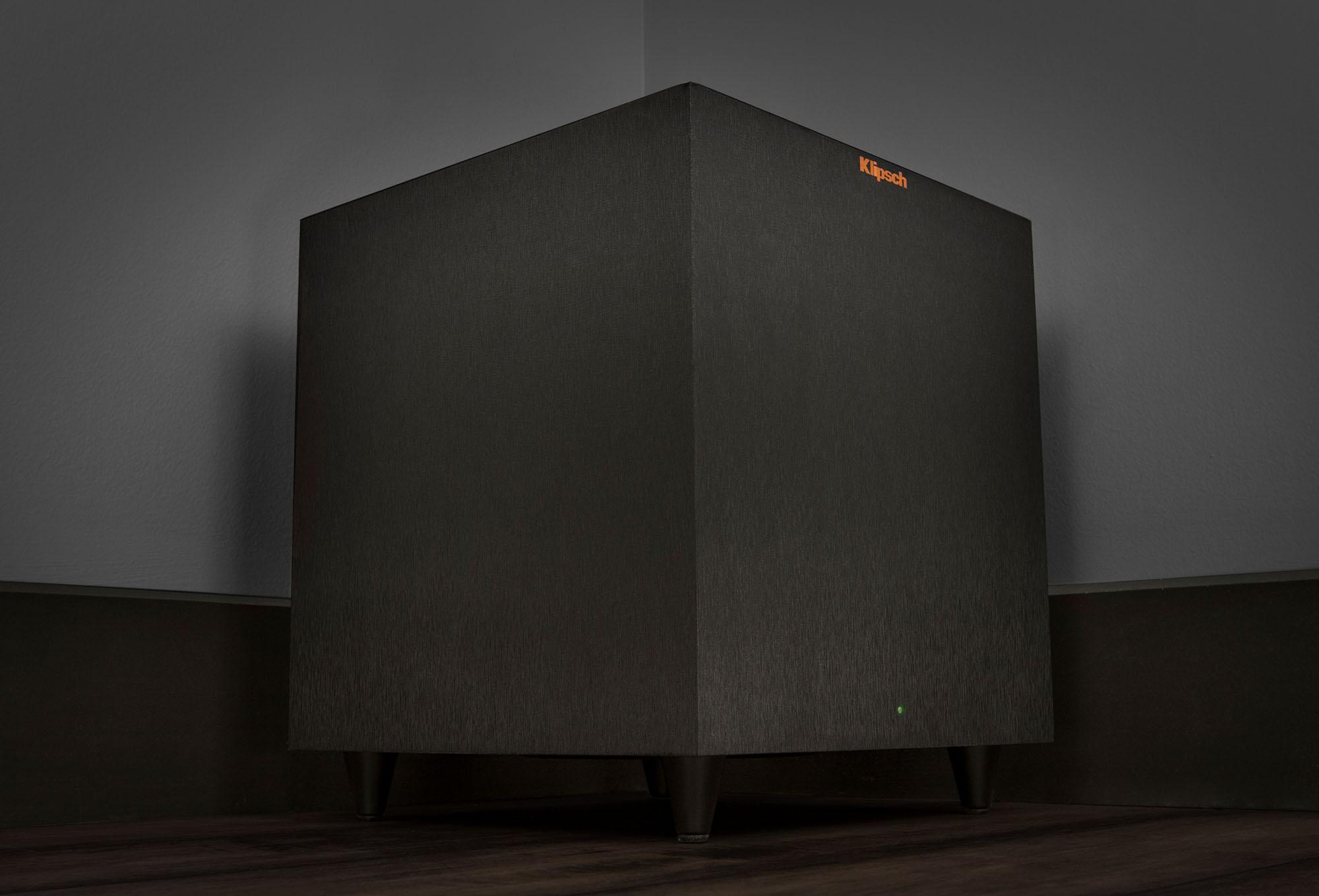

The down-firing wireless subwoofer is designed to deliver room-filling low frequencies without requiring too much floorspace. The 2.4GHz connectivity allows for premium, CD-quality sound anywhere in the room. Simply connect the compact, pre-paired transmitter to the subwoofer or LFE out on your receiver and place the subwoofer where it sounds and fits best in your room. The built-in all-digital subwoofer amplifier delivers ample power with high efficiency and true-to-source accuracy.

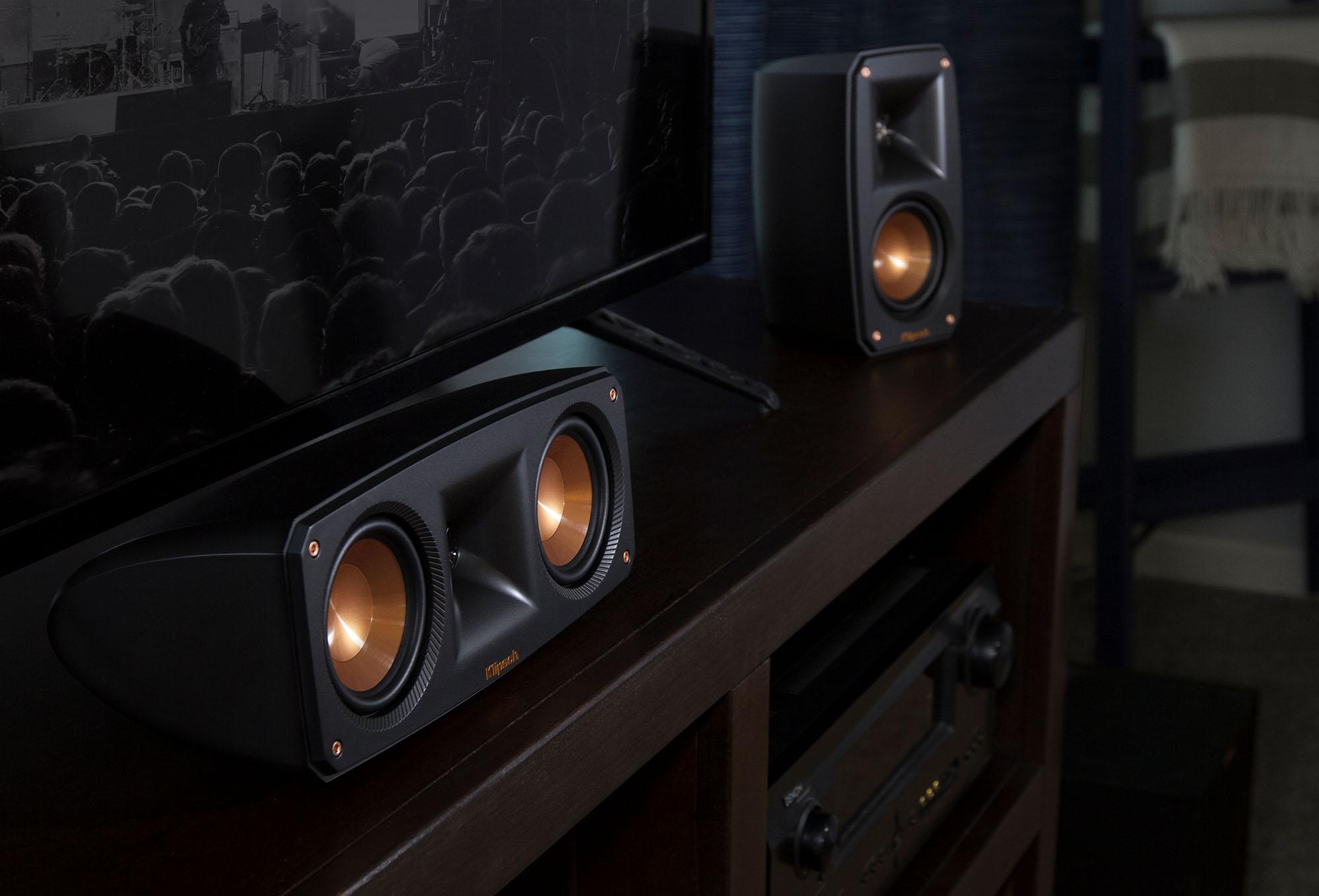

FLEXIBLE SYSTEM PLACEMENT

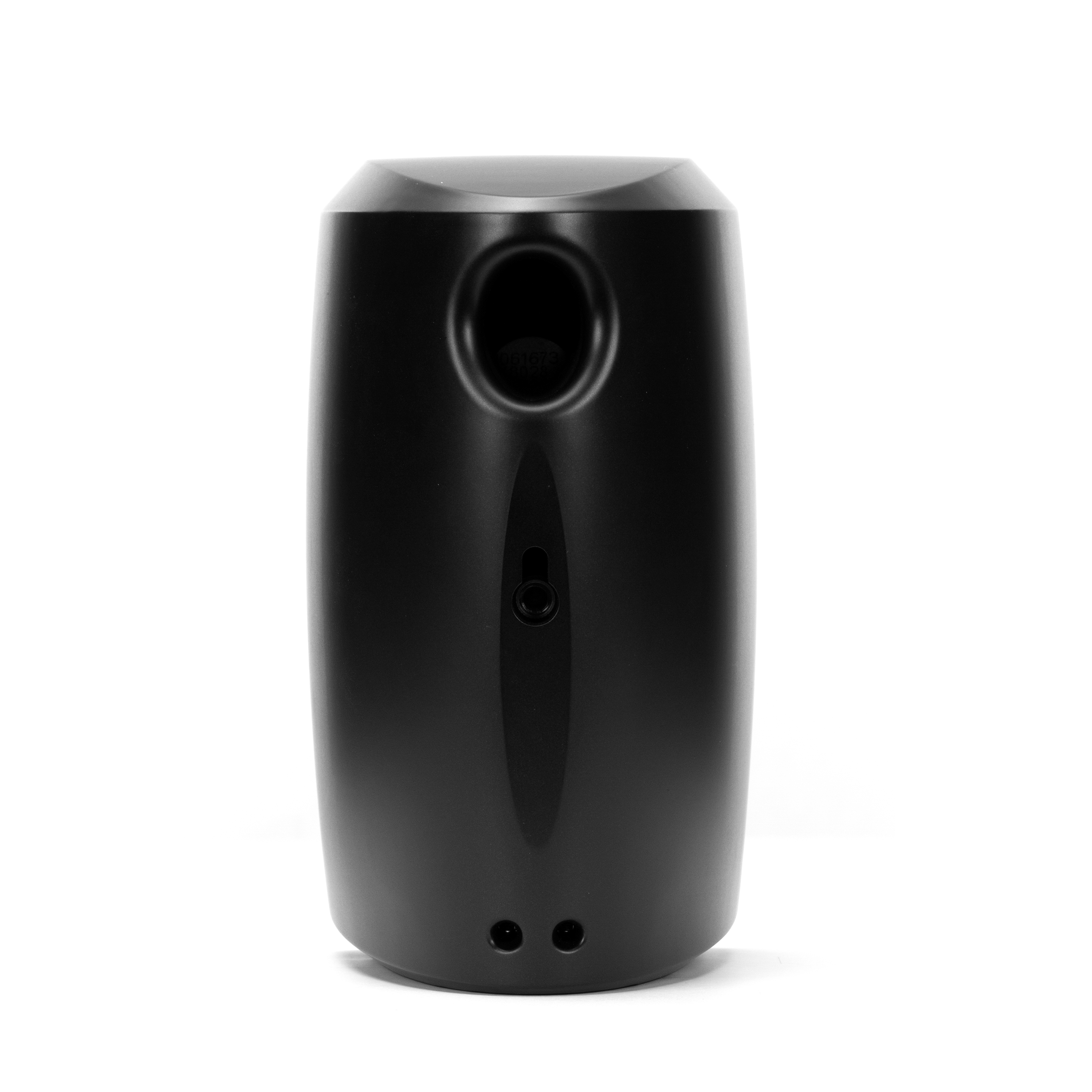

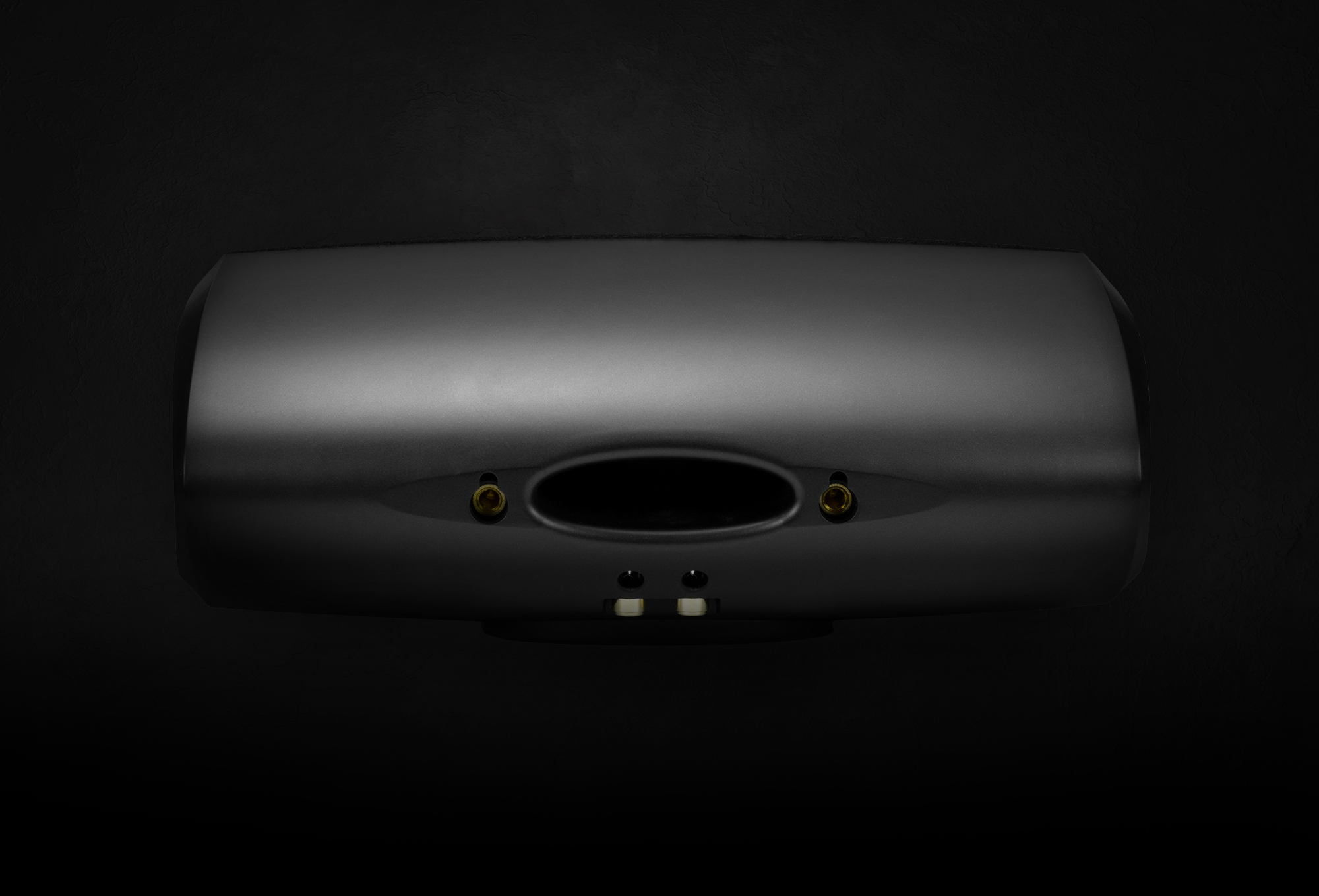

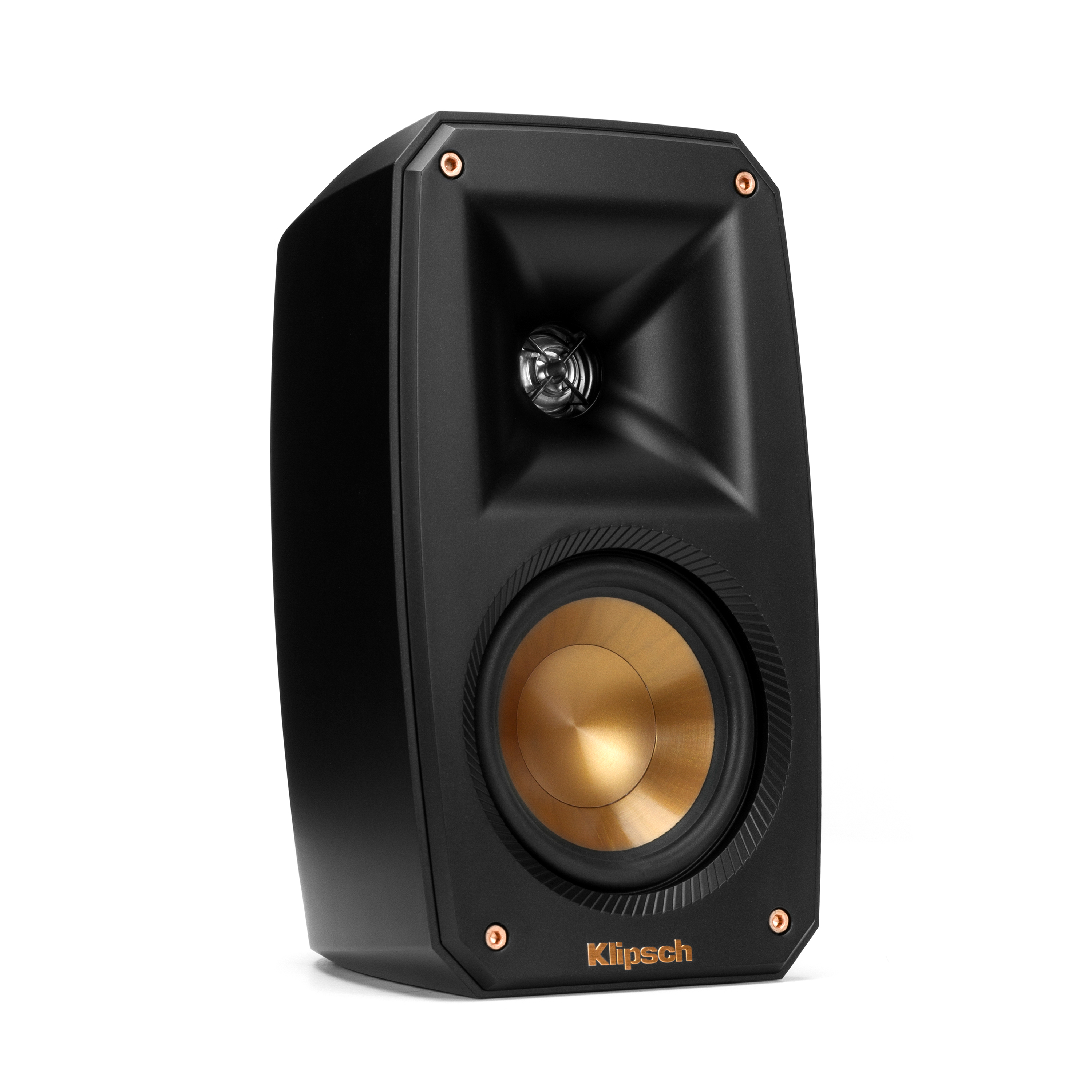

To complement the easy placement of the wireless subwoofer, each satellite speaker has a keyhole mount and a ¼” x 20 threaded insert (the center channel has dual keyhole / inserts) for maximum mounting flexibility.
| Subwoofer | |
|---|---|
| ENCLOSURE TYPE | Bass Reflex via down-firing 8” woofer and port |
| ENCLOSURE MATERIAL | MDF |
| INPUTS | 2.4 GHz CD-quality wireless & Line level / LFE RCA jacks |
| MAXIMUM ACOUSTIC OUTPUT | 108 dB |
| AMPLIFIER POWER | 50 watts / 150 watts peak |
| FREQUENCY RESPONSE | 38Hz – 120Hz +/– 3dB |
| SATELLITE & CENTER CHANNEL | |
| SPEAKER WIRE | 14–18 gauge compatible |
| MOUNTING | Satellite: Keyhole and 1/4” x 20 threaded insert, Center: Dual Keyhole with dual 1/4” x 20 threaded insert |

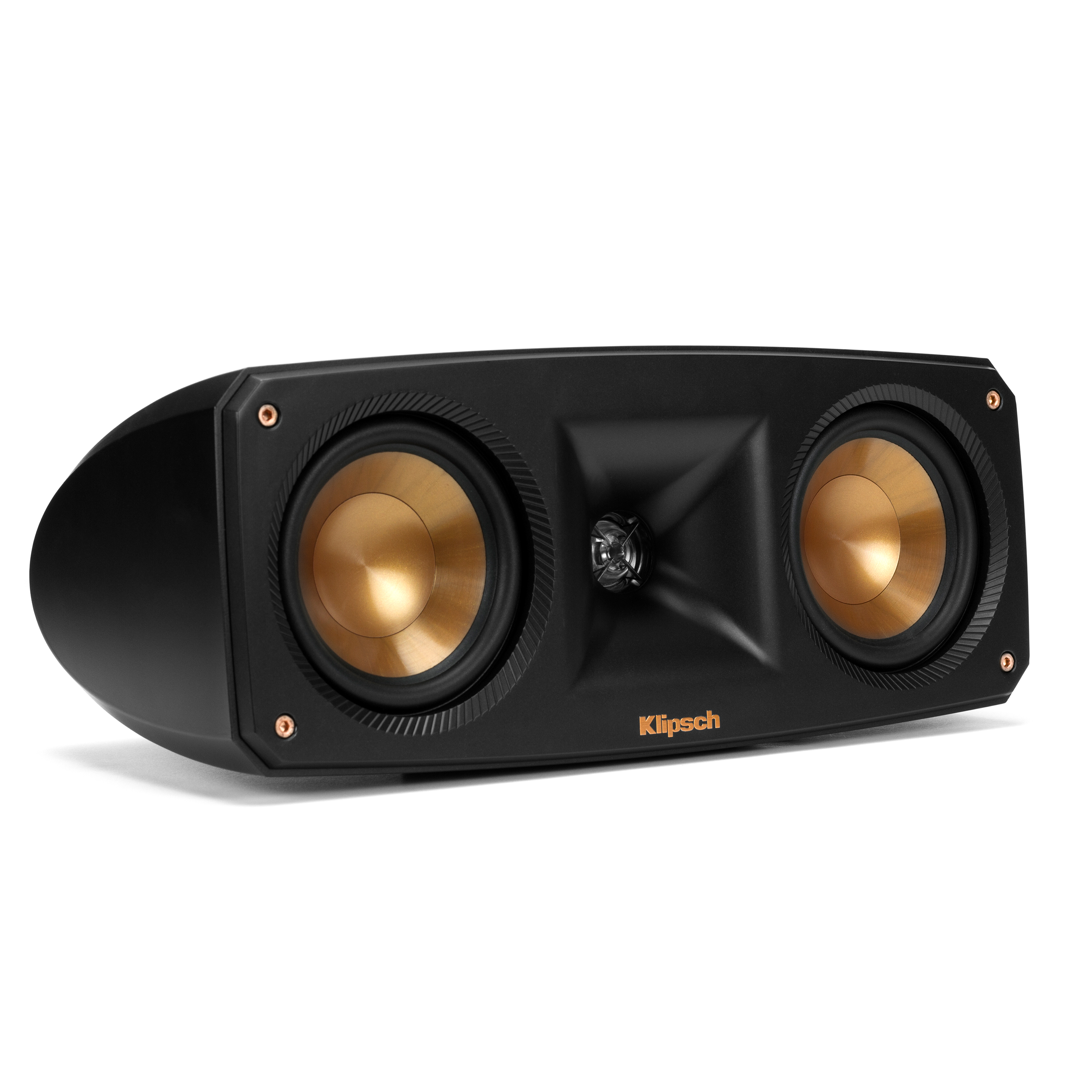

| LOW FREQUENCY DRIVER | Satellite: 3.5” (8.9 cm) copper IMG woofer, Center: Dual 3.5” (8.9 cm) copper IMG woofer |
| HIGH FREQUENCY DRIVER | Satellite & Center: 3/4” (1.9 cm) aluminum diaphragm compression driver mated to 90° x 90° Tractrix® horn |
| POWER HANDLING | Satellite: 50 watts (200 watts peak), Center: 75 watts (300 watts peak) |
| SENSITIVITY | Satellite: 91dB @ 2.83 volts / 1 meter, Center: 94dB @ 2.83 volts / 1 meter |
| NOMINAL IMPEDANCE | 8 ohms compatible |
| FREQUENCY RESPONSE | 110Hz – 23kHz +/– 3dB |
| Subwoofer | |
| FINISH | Brushed Black Polymer Veneer |
