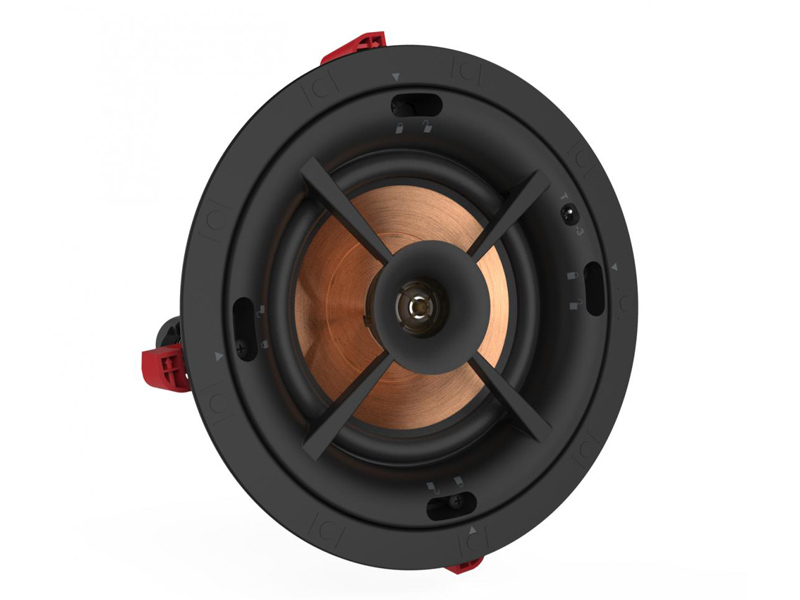

PRO-160RPC IN-CEILING SPEAKER
With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated round Tractrix® horn, the PRO-160RPC brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.
Features:
- 6.5" Cerametallic Woofer
- 1" Titanium Dome Tweeter mated to a composite coated round Tractrix® Horn
- Exclusive, modular SecureFit™ Installation System
- Round and Square paintable, magnetic grilles included

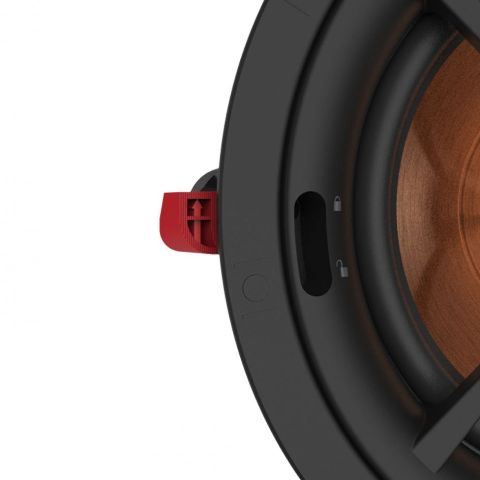

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.
BEZEL-FREE ROUND/SQUARE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Architectural speakers not only need to sound great, but blend in seamlessly with even the most luxurious interior designs. The Professional Series Reference Premiere in-ceiling speakers include both round and square grilles in the box, so they look great in any space right out of the box.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
Specifications | |
---|---|
Frequency Response | 56Hz - 23kHz +/- 3dB |
High Frequency Driver | 1" (2.54cm) Titanium Dome Tweeter mated to a composite coated round Tractrix® Horn |
Low Frequency Driver | 6.5" (16.51cm) Cerametallic Woofer |
Sensitivity | 95 dB @ 2.83V / 1m |
Coverage Angle | 100° |
Power Handling | 50W RMS / 200W Peak |
Impedance | 8 Ohm Compatible |
Enclosure Type | ABS/Infinite Baffle |
Finish | Black Baffle/Frame, White Paintable Grille |
Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
Mounting Depth | 4.34” (11.03cm) |
Cutout Dimensions | 8.3” (21.1cm) |
Product Weight | 7 lbs (3.18kg) |
Included | Round Grille, Square Grille, Paint Shield |
Installation Kit | IK-650-C (Sold Separately) |
Fire Rated Enclosure | ME-650-C (Sold Separately) |
