Onkyo Stereo Receiver With Built-In Bluetooth - TX8220

SKU : TX8220

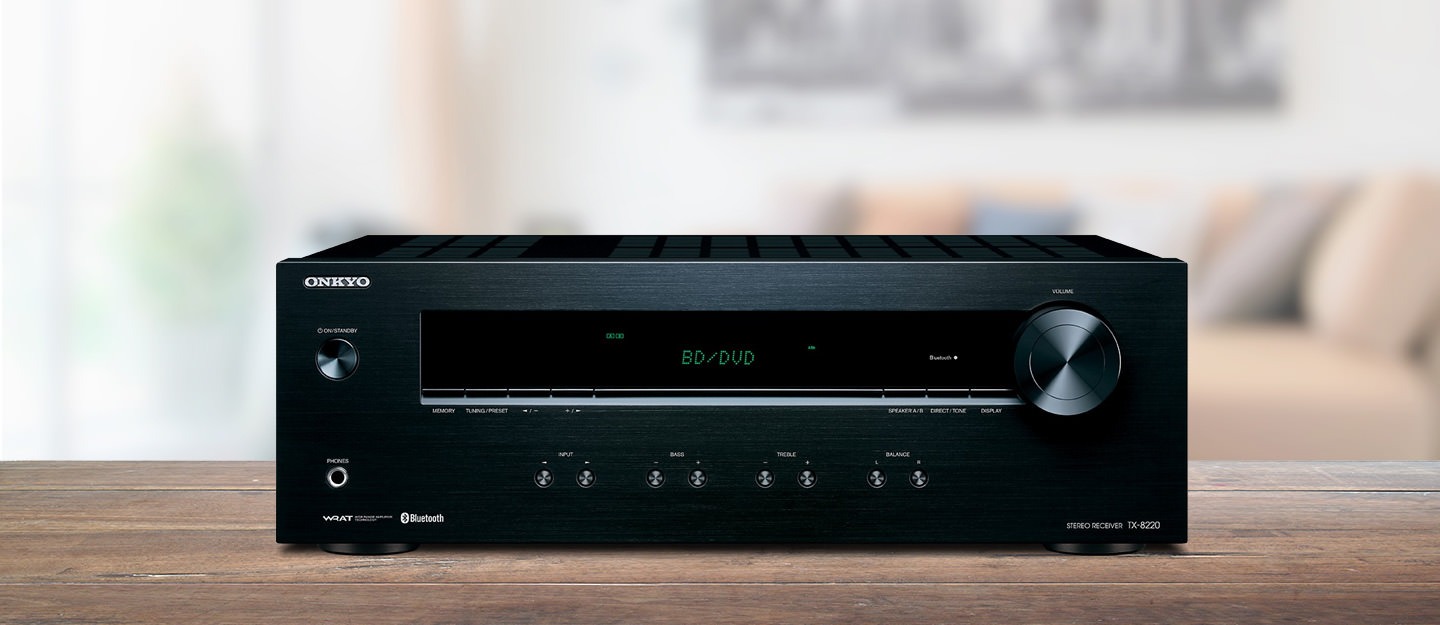

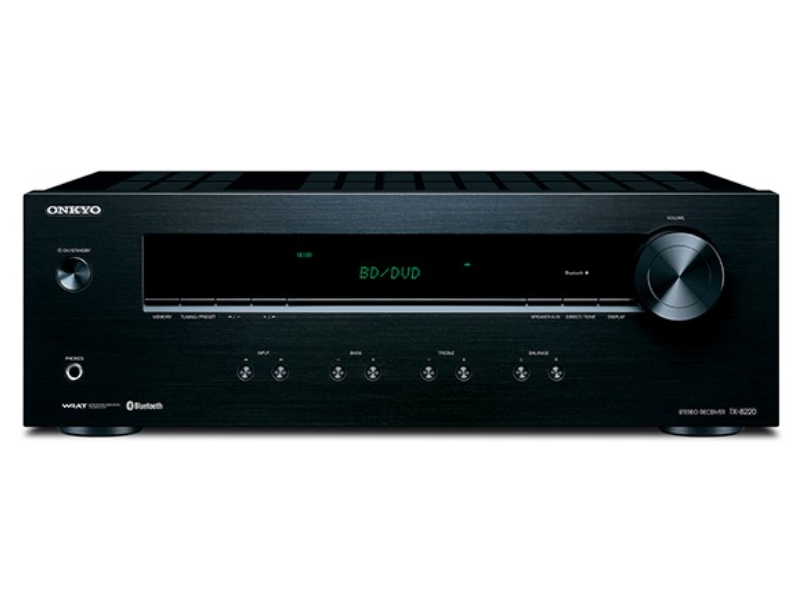

Universal connectivity meets pure analog amplification in a simple hub that sounds a whole lot better than its modest price suggests. All the essentials are covered with digital audio inputs for TV and BD/DVD player connection, along with an MM phono equalizer, four analog line-level inputs for CD player and everything else.

Smooth and easy Bluetooth streaming

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

Frequency Response10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode)
THD + Noise0.08 % (20hz-20kHz, Half power)
Dynamic Power140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front)
Power Watts/Ch (6 Ohms 1kHz, 2 Channel Driven)100, 10% THD
Warranty2 YEARS
RI-Compatible Remote ControlYes
Sleep TimerYes
Automatic/Manual TuningYes
Direct Access TuningYes
Preset Station NamingYes
Number of AM/FM Presets40
Firmware Updates via Network/USBYes/Yes
BluetoothYes (Version 4Ǎ, A2DP/AVRCP)
Headphone JackYes
Subwoofer Pre-outYes
Speaker A/+BYes
Phono InputYes

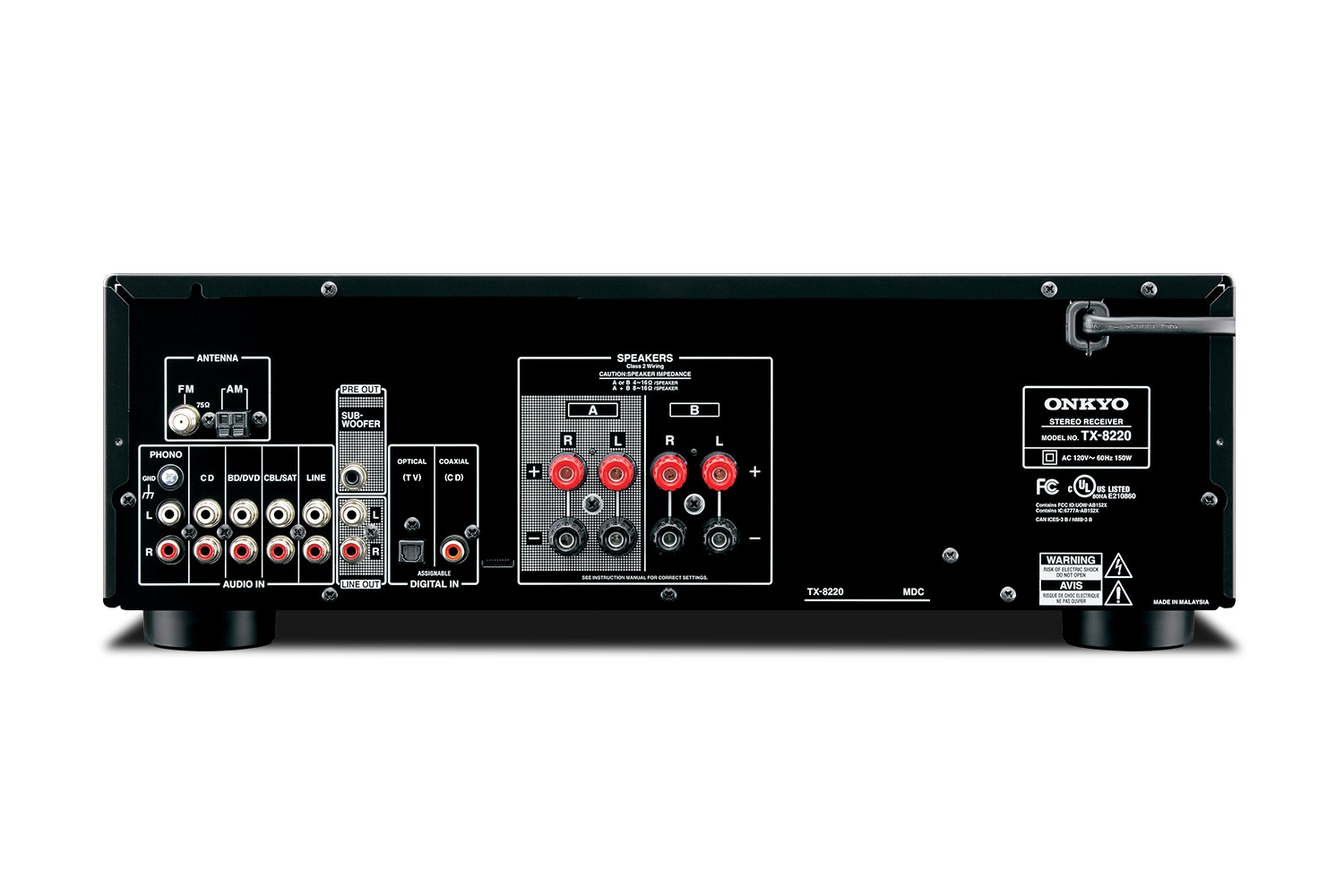

Digital Audio IN (Opt/Coax)1/1
Audio Input/Output4/1
192K/24 Bit DACsYes (PCM1754))
4 Ohm CapableYes
Direct/Pure ModeYes/-
6 Ohm CapableYes
Non-Phase-Shift Amp DesignYes (for Realistic Sound Imaging)
WRAT (Wide Range Amplifier Technology)Yes
Dynamic Power140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front)
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)45, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 2 Ch Driven, FTC)100, 0.10% THD
S/N Ratio100 dB (IHF-A, Line In, Speaker Out) 93 dB ( IHF-A, Phono In, Speaker Out)
Phono Overload (1 kHz)40 mV (MM, 1 kHz, 0.5%)
FM87.5 MHz–107.9 MHz
AM530 kHz–1,710 kHz
FM/AM Preset Memory40 Stations
Power SupplyAC 120 V˜, 60 Hz
Power Consumption2.7 A
Standby Power Consumption0.4 W
No-Sound Power Consumption20 W
Network Standby Power Consumption2.9 W
Dimensions (W x H x D)17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 328 mm)
Weight15.0 lbs. (6.8 kg)
