Totem Acoustic KIN Series Powered Subwoofer With Wireless Connectivity In Satin White - KIN SUB10 (W)

Totem Acoustic KIN Series Powered Subwoofer With Wireless Connectivity In Satin White - KIN SUB10 (W)

Totem Acoustic KIN Series Powered Subwoofer With Wireless Connectivity In Satin Black - KIN SUB10 (B)

Category : Subwoofers
SKU : KIN SUB10 (W)
SKU: KIN SUB10 (W)
SKU: KIN SUB10 (B)


Literature

The KIN Sub 10 is yet another audio solution in the award winning, versatile KIN family. Perfectly proportioned and packed with proprietary Totem technology, KIN Sub 10 accentuates the bass excitement of every music, movie, or gaming experience.

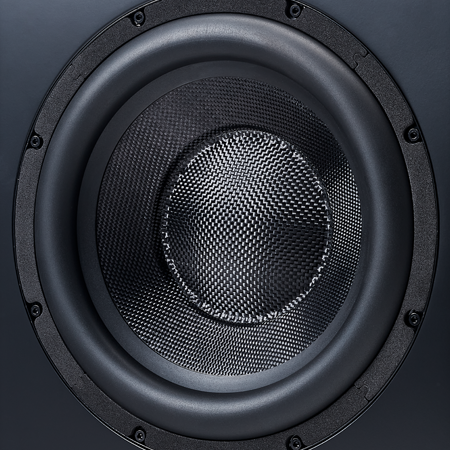

The 10” Woven Fiberglass Woofer is driven by an oversized vented magnetic structure designed for tremendous dynamic capacity.  It is powered and controlled to perfection by our digital 300W amplifier, developed in tandem to achieve the perfect balance of musicality and impact.  Overall presence can be fine-tuned through a unique BASS EQ offering a pure and linear Natural setting or the enhanced High Impact setting for more intense bass energy.

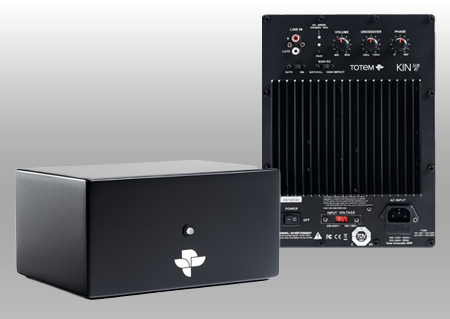

Placement options become boundless with the addition of the optional LINK wireless transmitter.   Convenience and simplicity blend with performance and modern technology in the KIN Sub 10.  Listen closely and you can hear the mantra rise from the streets. We are young. We are fun. We are KIN.

Design Highlights

  • Compact for easy home integration
  • Sealed enclosure for consistent performance regardless of placement
  • Ultra low-profile feet
  • Wireless connectivity option

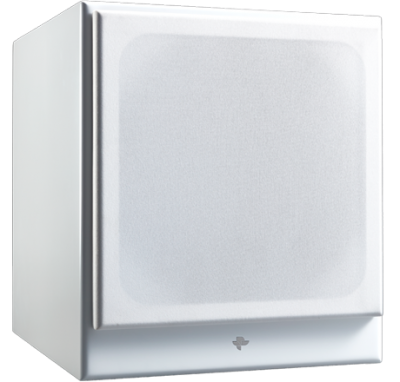

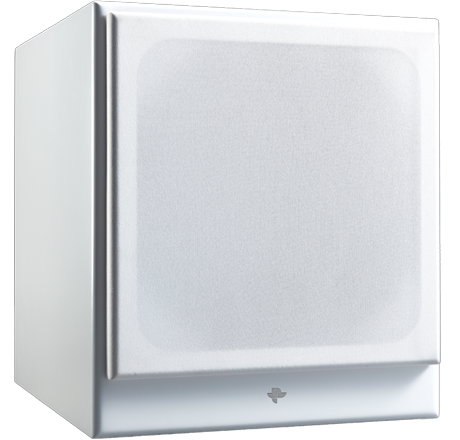

  • Available in Black and White Satin with matching magnetic grill

Technical Features

  • 300 watt Class D high efficiency amplifier
  • 10” Reinforced Fiberglass woofers with anodized aluminum dust cap
  • High Impact and Natural BASS EQ settings

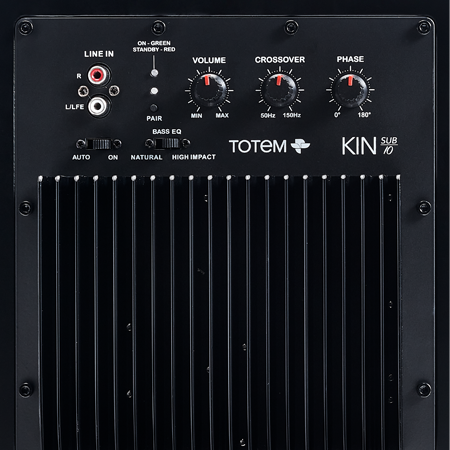

  • Variable volume / phase / frequency adjustments for pinpoint accuracy
  • Sealed enclosure for consistent performance regardless of placement

Customized Drivers

Bespoke Acoustic Engineering

Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet our parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build our own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.

Uniquely Designed Amplifiers

Specifically conceived for one job

Each Totem subwoofer amplifier is designed with a specific set of parameters for a single goal; to power the particular drivers within its given enclosure, all designed in tandem.  Simply put, each Totem subwoofer amplifier is unique.  As unique as every Totem driver.  They are designed in tandem so they work harmoniously and with ultimate efficiency, attaining the maximum from each other.  Throughout the design process the amplifier is tweaked and modified until it perfectly combines power and musicality.

Connectivity Options

Go wired or wireless

Stereo RCA and LFE inputs offer the wired connection options cover all modern gear. But, it is also equipped with an integrated Bluetooth receiver so the optional LINK transmitter can be added for wireless connectivity.

Sealed Enclosure

Better performance and versatility

The trapped air inside a sealed enclosure acts as a spring, dampening the movement of the woofer, and smoothly modulating the cone’s motion. This translates to notes being produced evenly for natural, musical, clear bass output.  They can also be placed very close to boundaries or even within furniture with very little, if any, affect on their performance.

Specification
DesignPowered Subwoofer
EnclosureSealed
AmplifierClass D 300 watts
Woofer10” cone composed of high tensile spun fibreglass strands top coated and bonded to a cellulose core. Driven by vented magnetics utilizing an oversized ferrite magnet assembly. Butyl rubber surround.
Voice coilHigh temperature enamel resin coated copper wire wound on a vented aluminum former
Frequency response27 Hz – 200 Hz
CrossoverVariable from 50Hz to 150Hz, 24dB/Octave
PhaseVariable from 0 to 180 degrees
VolumeVariable
InputsStereo RCA/LFE/Wireless
Power modesAuto/On
Dimensions (WxHxD)13” x 11.5” x 13.5” / 330mm x 292mm x D 345mm
Weight30.86lb / 14kg
