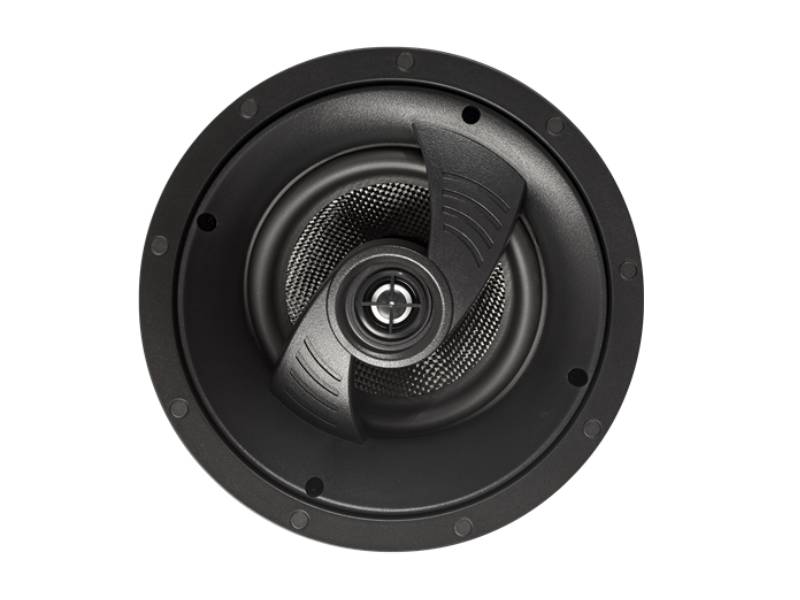

Totem Acoustic Slim 6 Inch Angled In-Ceiling Speaker - KIN AIC 6 SLIM

Category : In-Ceiling Speakers
SKU : KIN AIC 6 SLIM


Literature

This speaker possesses all the technical and design features of the KIN Slim IC series, and the signature performance characteristics of all Totem speakers. But, it’s quite unique, and is yet another ingenious audio solution.

When light fixtures, heating or cooling vents, and all other potential obstructions prohibit perfect placement within a ceiling, the AIC 6 Slim will overcome the issues. The angled baffle directs the sound towards the listening area so no matter how imperfect it’s location, the performance is flawless.

Discover your Kin Architectural and expand your musical experiences.

Optional Accessories

PCK6 :  Pre-construction kits facilitate installation before drywall has been installed.

SGK6 :  Square Grille Kits permit cosmetic finishing touches to suit personal design tastes.

Design Highlights

  • Totem’s unique holographic voicing and superior on-and off-axis performance
  • High-strength, easy deployment dogs permit simple and solid installation
  • Paintable neodymium-activated stainless-steel grills
  • Shallow profile
  • Intermeshes with every Totem traditional speaker

Technical Features

  • Customized Carbon Fiber woofers
  • Ceramic tweeters
  • Pivoting tweeter faceplate
  • High efficiency
  • Gold-plated terminals

Enormous Dispersion

KIN IC diffuse sound in an enormously wide, expansive manner comparable to a flood light and illuminate a room with Totem’s holographic sound whereas most others function like a focused, narrow spotlight, creating small acoustic “hot spots”.  The dispersion is almost twice that of competitive speakers, so it takes fewer Totem speakers to thoroughly fill a room, and listeners enjoy the same sound whether seated or standing.

Slim Profile

This series of 5 in-wall, in-ceiling, and angled in ceiling speakers have a mounting depth that is 25% shallower than comparable KIN IC models. The remarkable shallowness ensures KIN IC Slim can fit wherever sound is required.

Carbon Fiber Woofers

The pure polymer impregnated carbon weave is very stiff so it maintains its perfect shape through punishing bass output.  It is also incredibly light so it reacts instantaneously.   Coupled to a high compliance rubber suspension, the cone motion is controlled for the best possible transient response and clarity. The overall result is thunderous, fast, tight bass.

Ceramic Dome Tweeters in Pivoting Faceplate

An aluminum dome receives a ceramic coating to greatly improve the stiffness and damping characteristics over traditional metal domes.  This procedure moves the natural resonance out to 25kHz, well past our hearing ability, for the clearest, distortion-free sound.  The faceplate is pivotable to allow the directional high frequencies to be aimed at the listening area.

Specification
Design: Slim 6″ Angled In-Ceiling
Frequency Response: 60 Hz – 25 kHz
Recommended Power:10-100w
Woofer: 6″ Carbon Fiber
Tweeter: 3/4″ Cermaic Dome
Impedance: 8 ohm
Sensitivity (dB @1W-1M): 90dB
Dimensions (w x h x d): 239 x 121mm / 9.37 x 4.76″
Cutout: 206mm / 8.11″

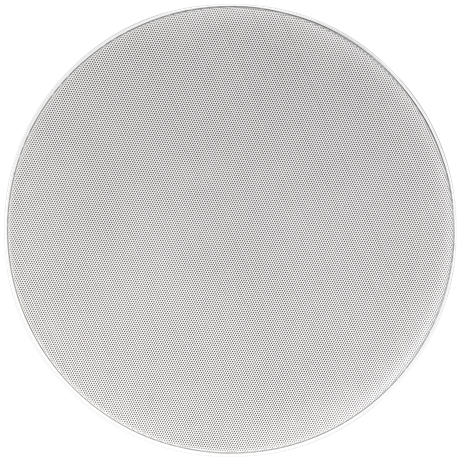

Grille Type: magnetic, paintable, virtually bezel-less white metal
Accessories / Options: Pre-construction brackets, square grilles
Speaker Terminals: Spring loaded Gold Plated
Weight: 3.1lb / 1.4kg
