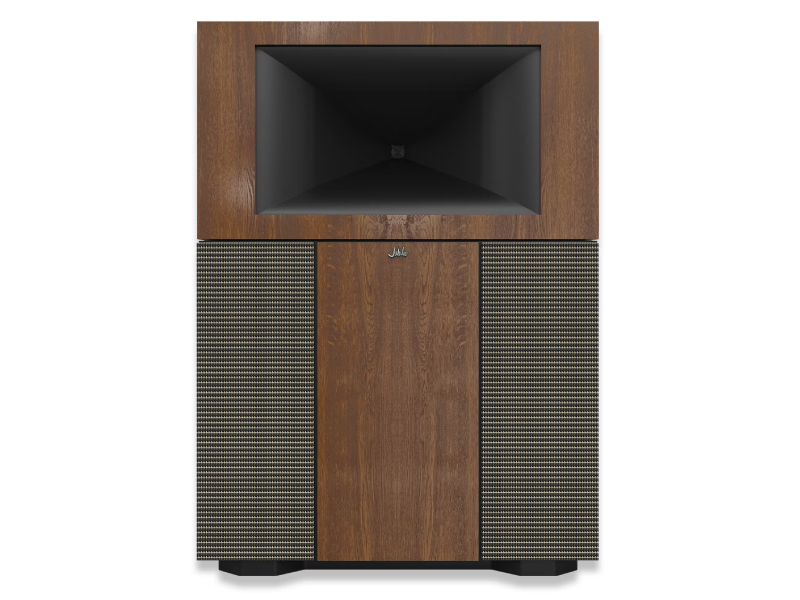

Klipsch Jubilee Floorstanding Speaker - JUBILEEW

SKU : JUBILEEW

$28,000.00 CAD

Literature

FLOORSTANDING SPEAKER



A PAUL W. KLIPSCH DREAM COME TRUE

The Klipsch Jubilee is founder Paul W. Klipsch's (PWK) final project. His dream was to create a loudspeaker to satisfy even the most ardent audiophiles. Originally intended to be the successor to the Klipschorn, PWK soon realized it was much more than that.



FROM DREAMS TO REALITY

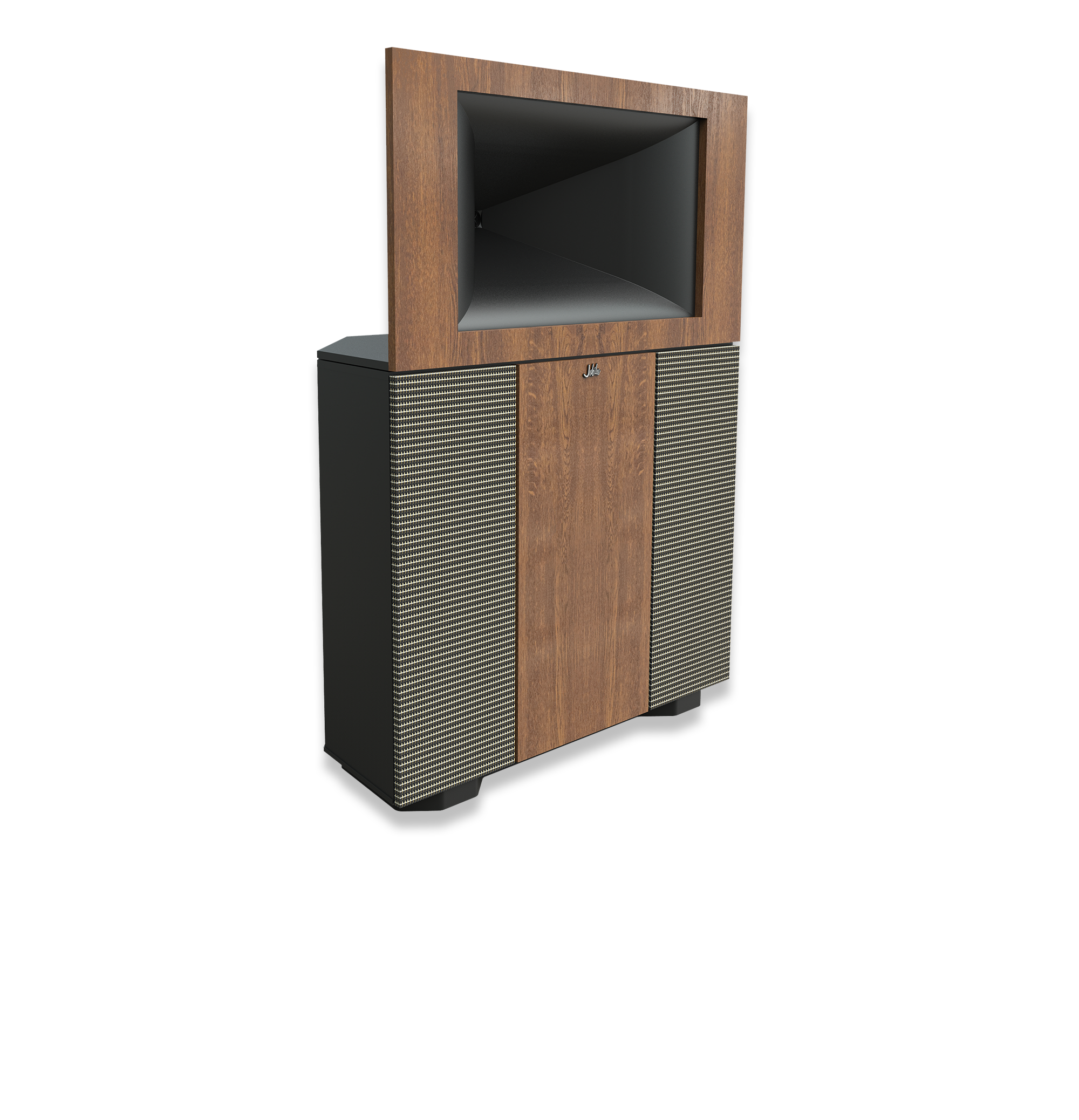

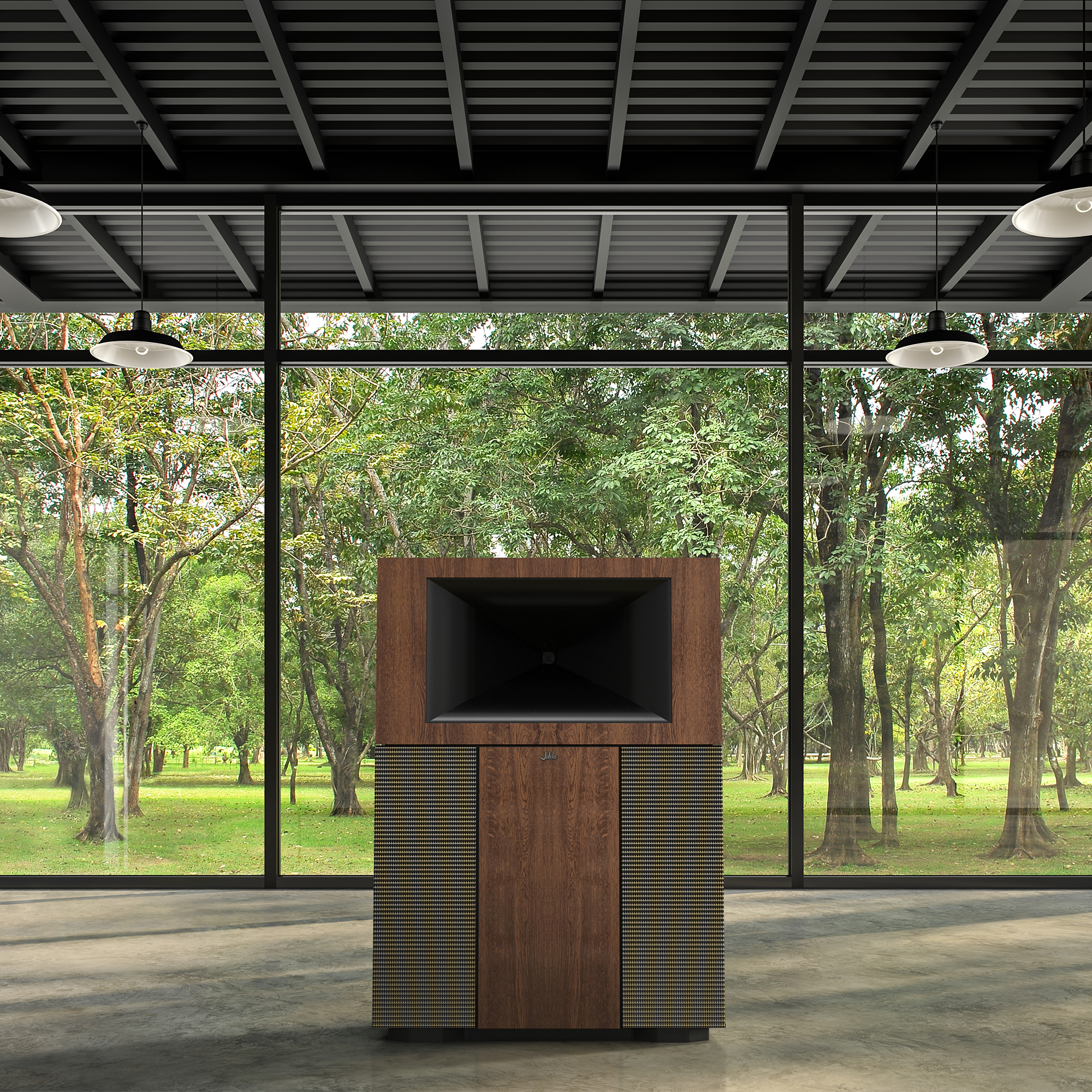

Designed to deliver the ultimate listening experience, the Klipsch Jubilee is a fully horn-loaded two-way loudspeaker incorporating the latest acoustic technology, including a patented horn-loaded vented low frequency enclosure and an all-new horn-loaded compression driver.



CONCERT QUALITY AT HOME

Musically accurate, the Klipsch Jubilee features an optimal active crossover designed for perfect phase coherency. You get smooth, effortless performances as though the musicians are in the room.



FEEL THE MUSIC

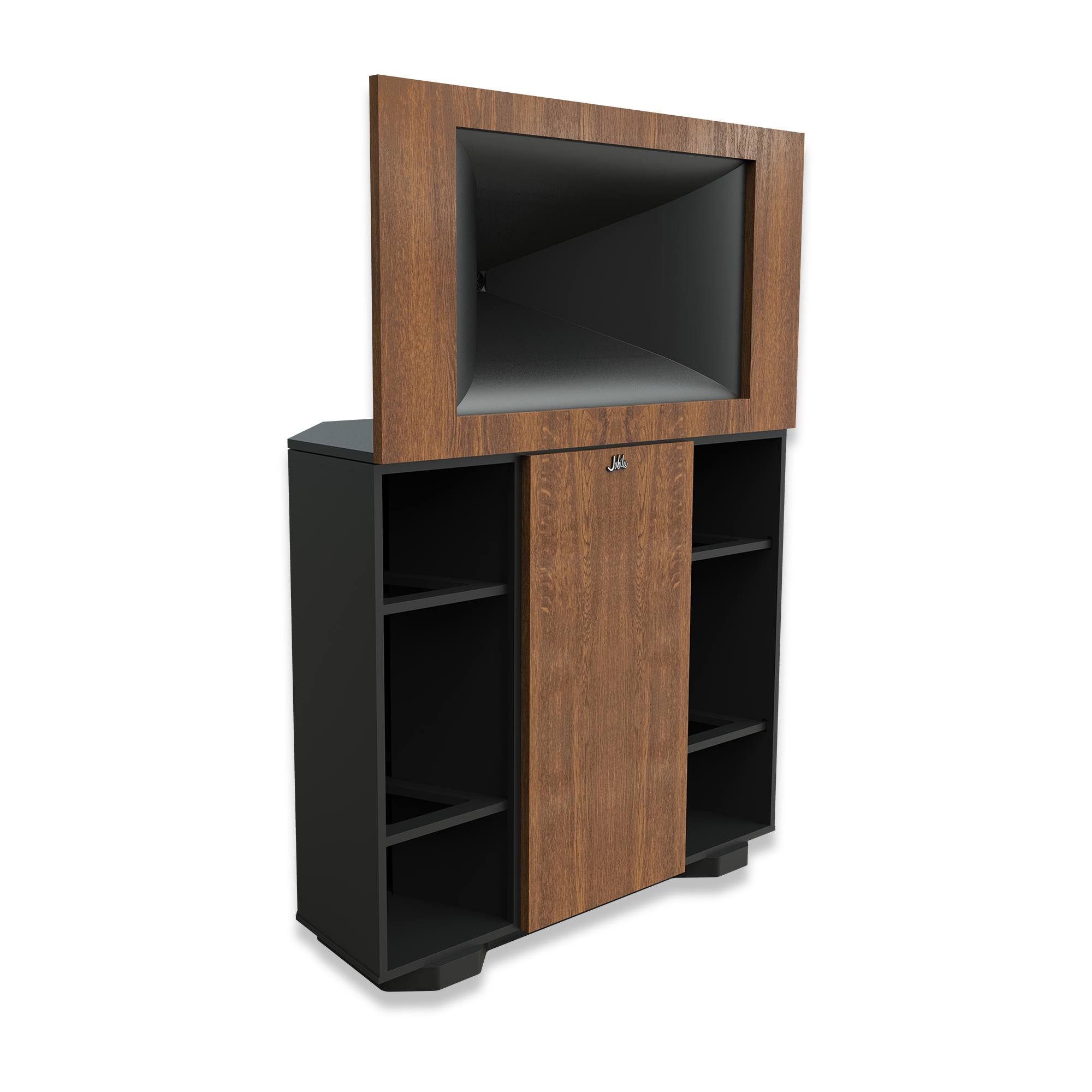

The Klipsch Jubilee's one-dimensional, folded-horn vented system creates an unparalleled listening experience:

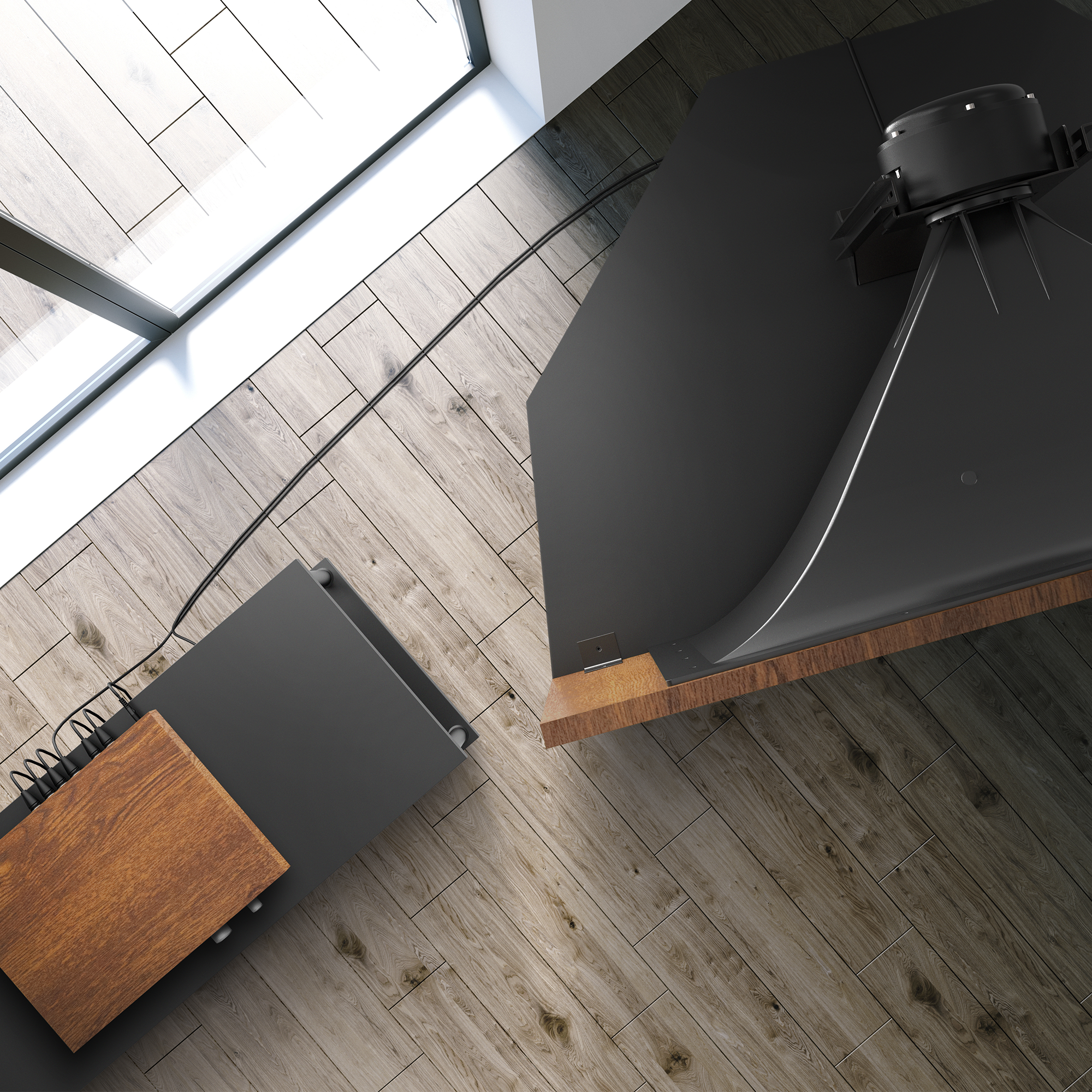

EXTERNAL WIDE DISPERSION PHASE PLUG

A wider, more even dispersion of high frequencies delivers an improved soundstage and imaging to hit that all-important sweet spot.

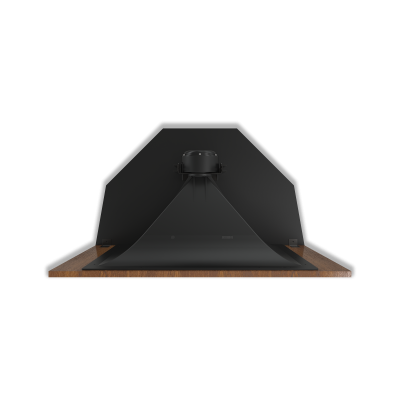

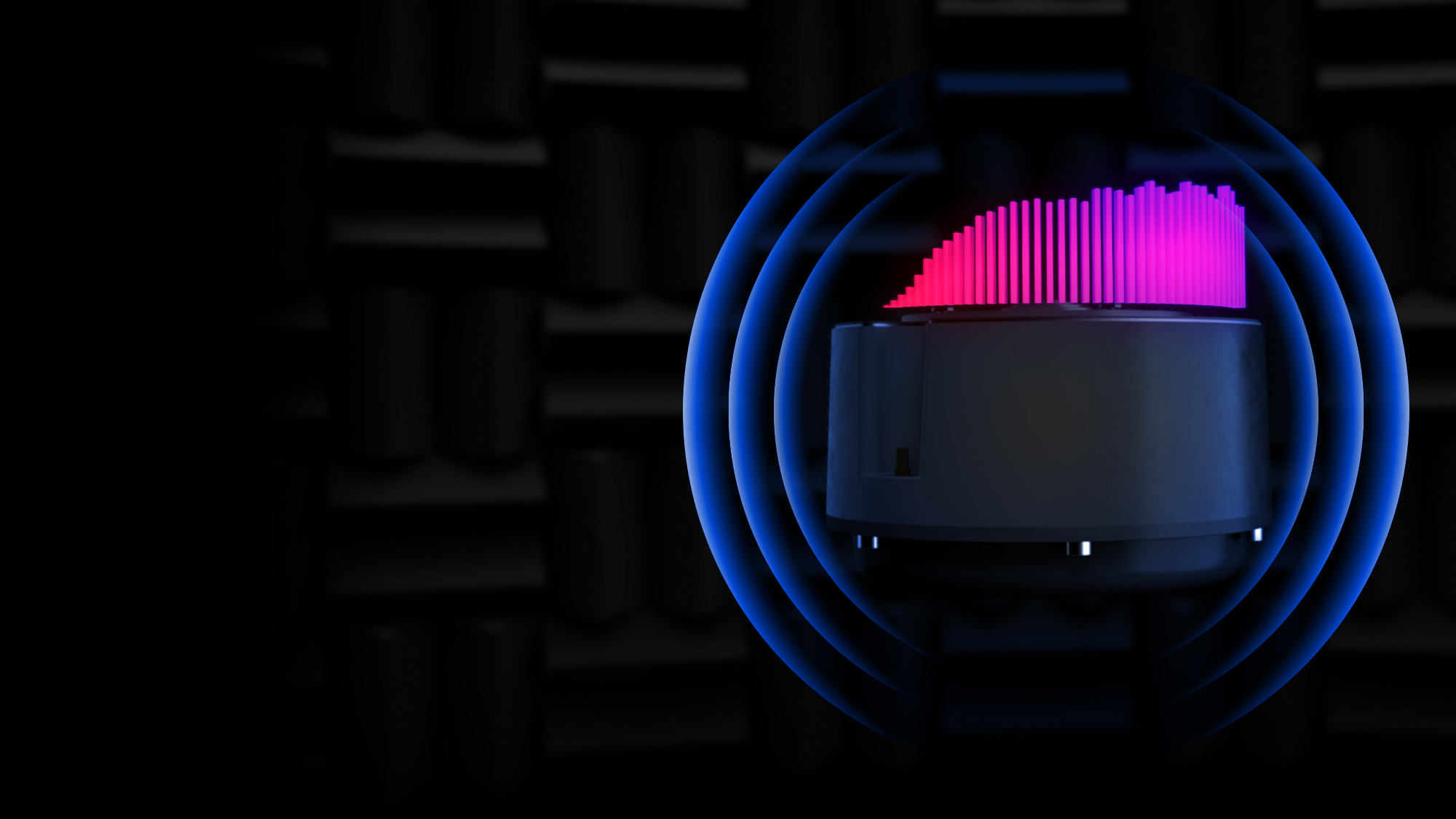

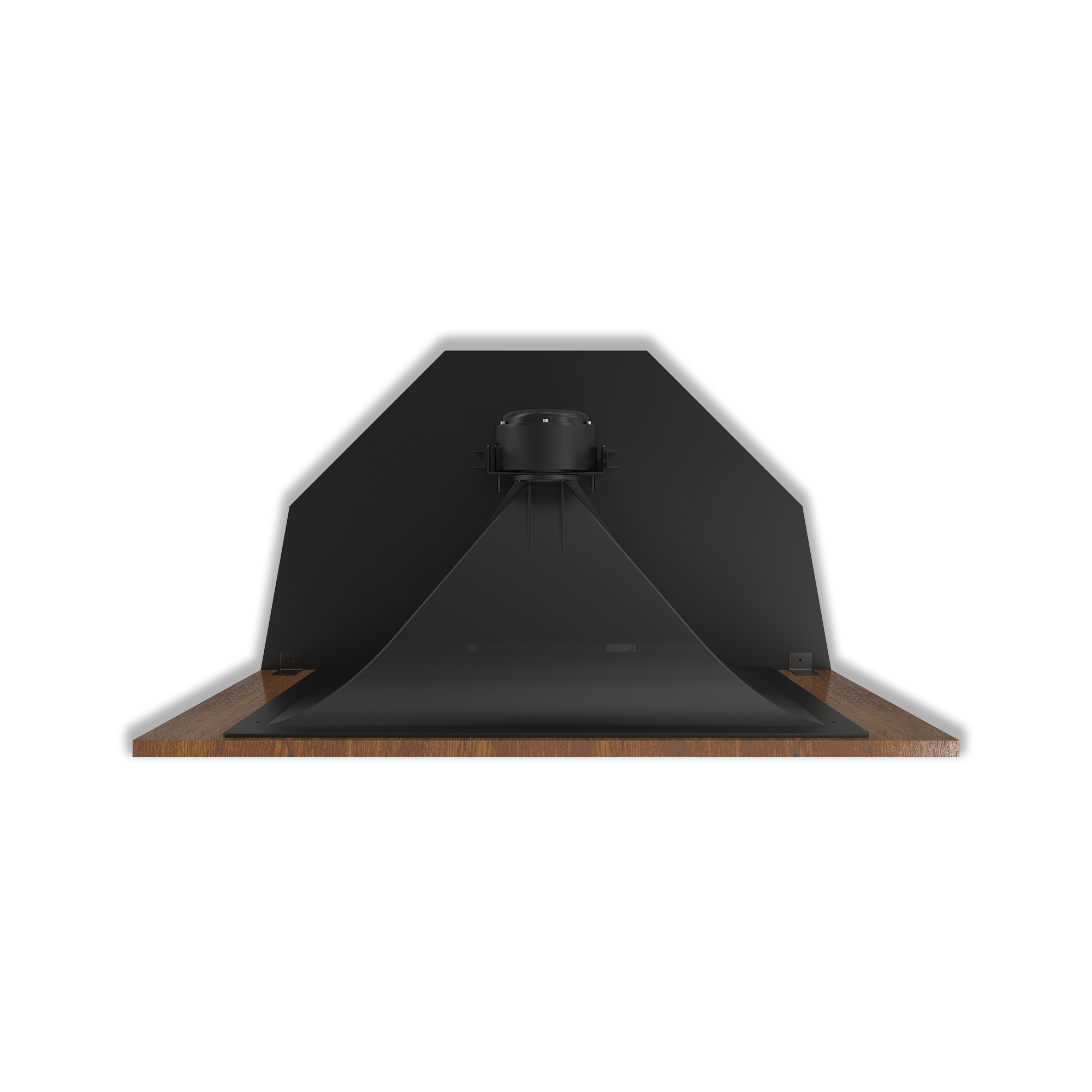

STATE-OF-THE-ART HIGH-FREQUENCY COMPRESSION DRIVER

  • Lowers crossover point below mid-range frequencies for seamless clarity
  • High-efficiency, maximum output, minimal distortion
  • Axiperiodic design ensures extended response and effortless performances

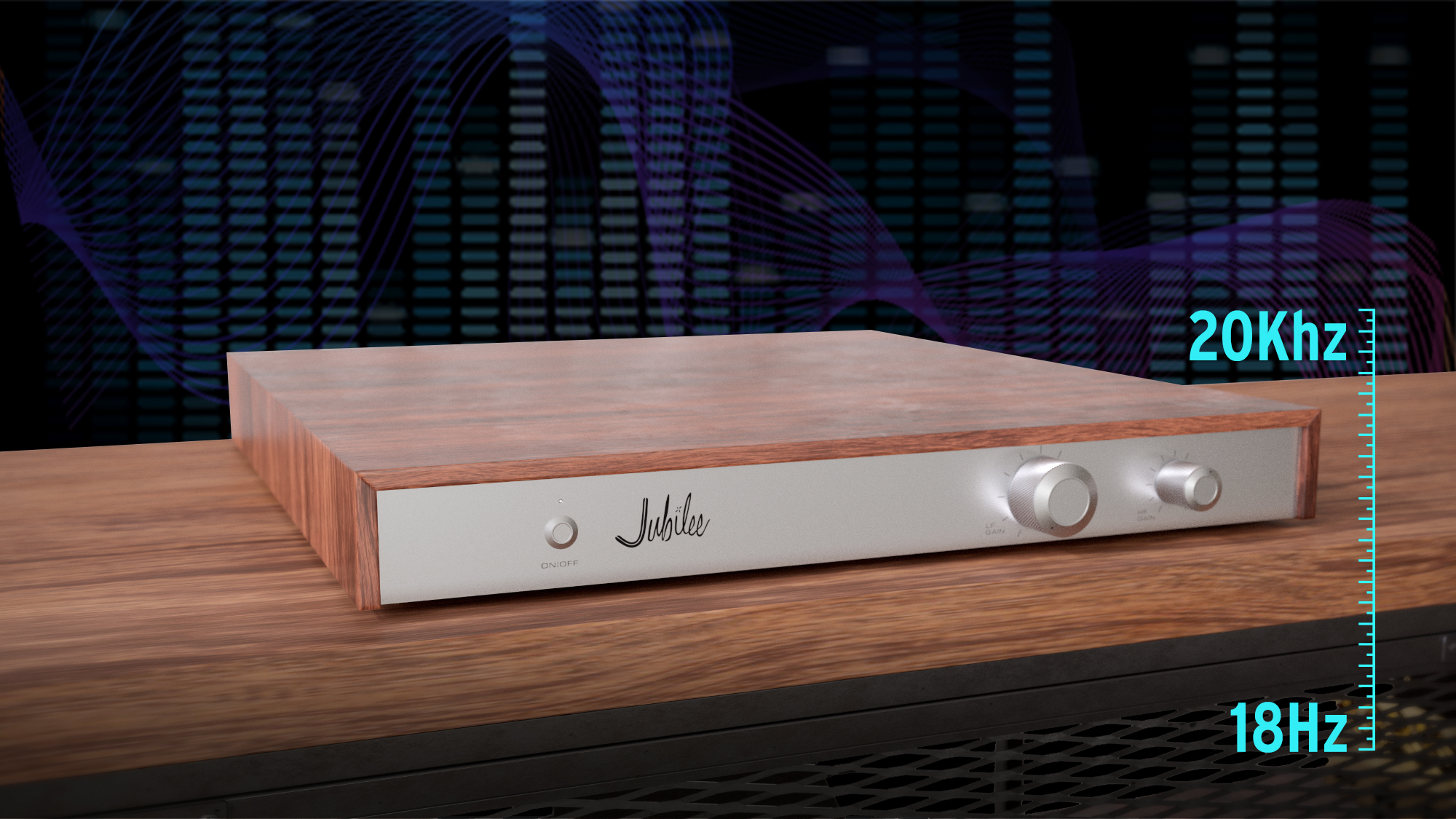

ACTIVE CROSSOVER FOR CLEANER SOUND

The active crossover maximizes output and adjusts the driver's time delay and phase for true-to-life sound.

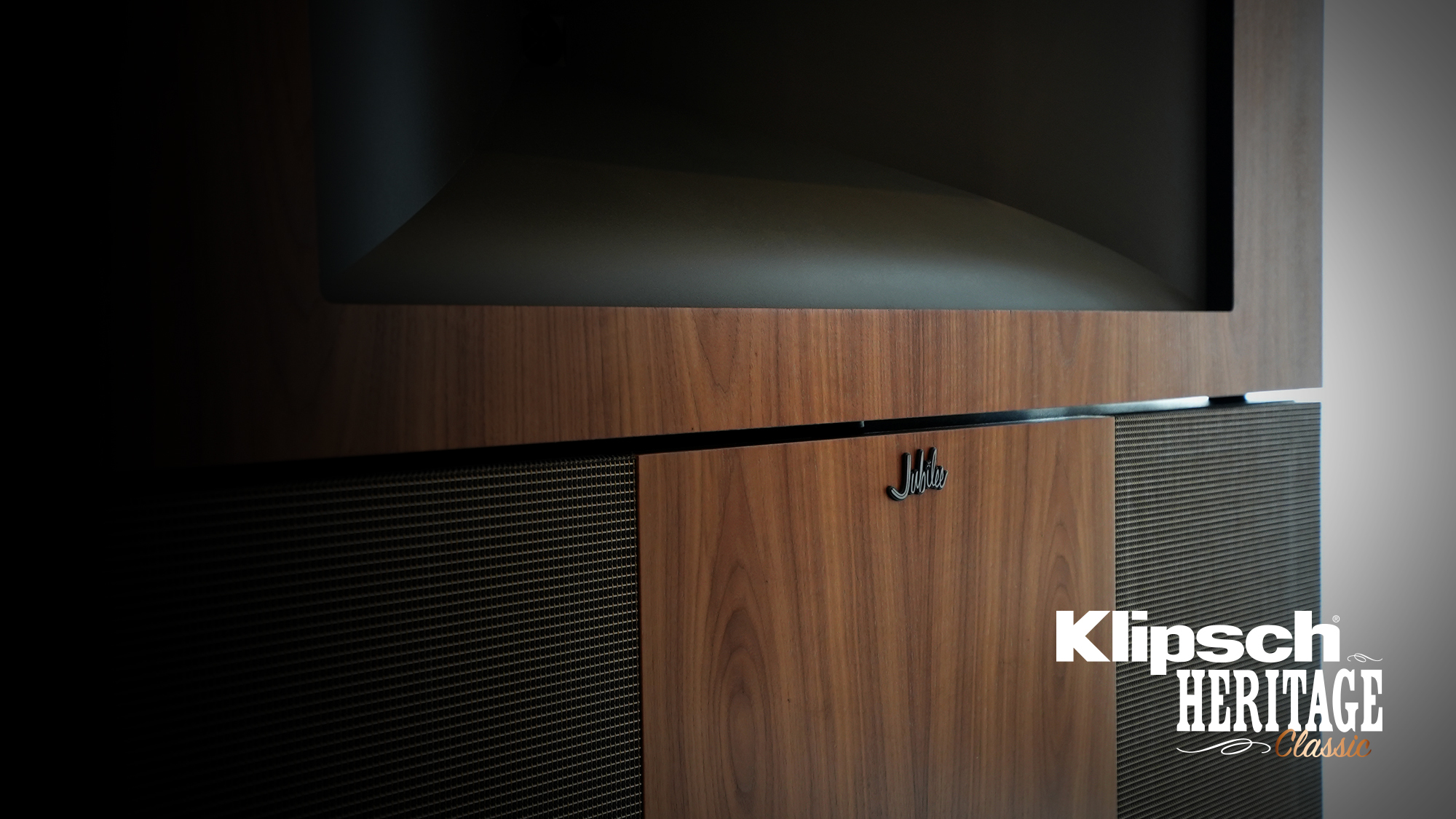

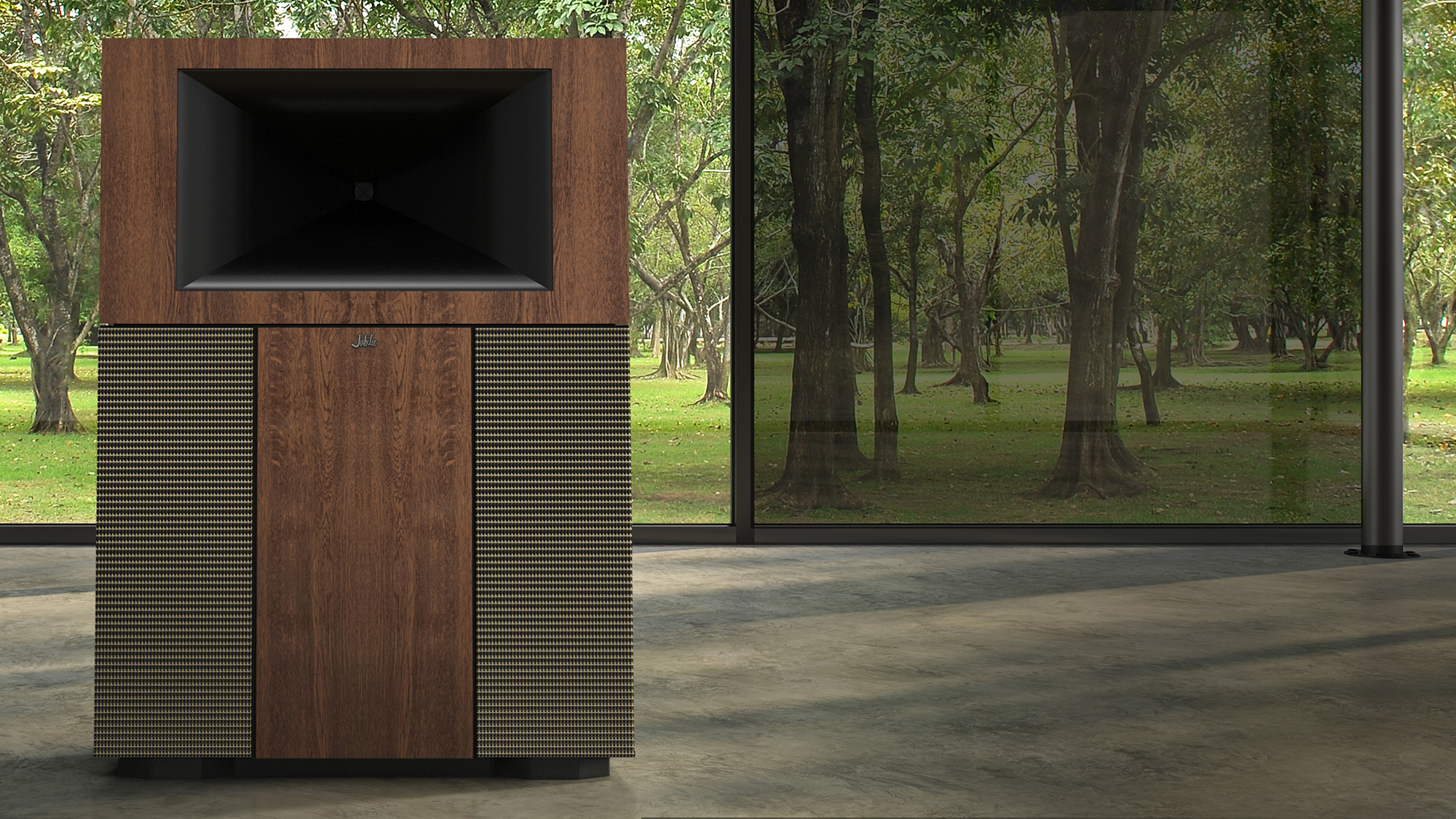

HEIRLOOM-QUALITY, SHOWSTOPPING DESIGN

Beautifully crafted, these legendary speakers are available in book-matched real wood veneer in American Walnut or Black Ash.

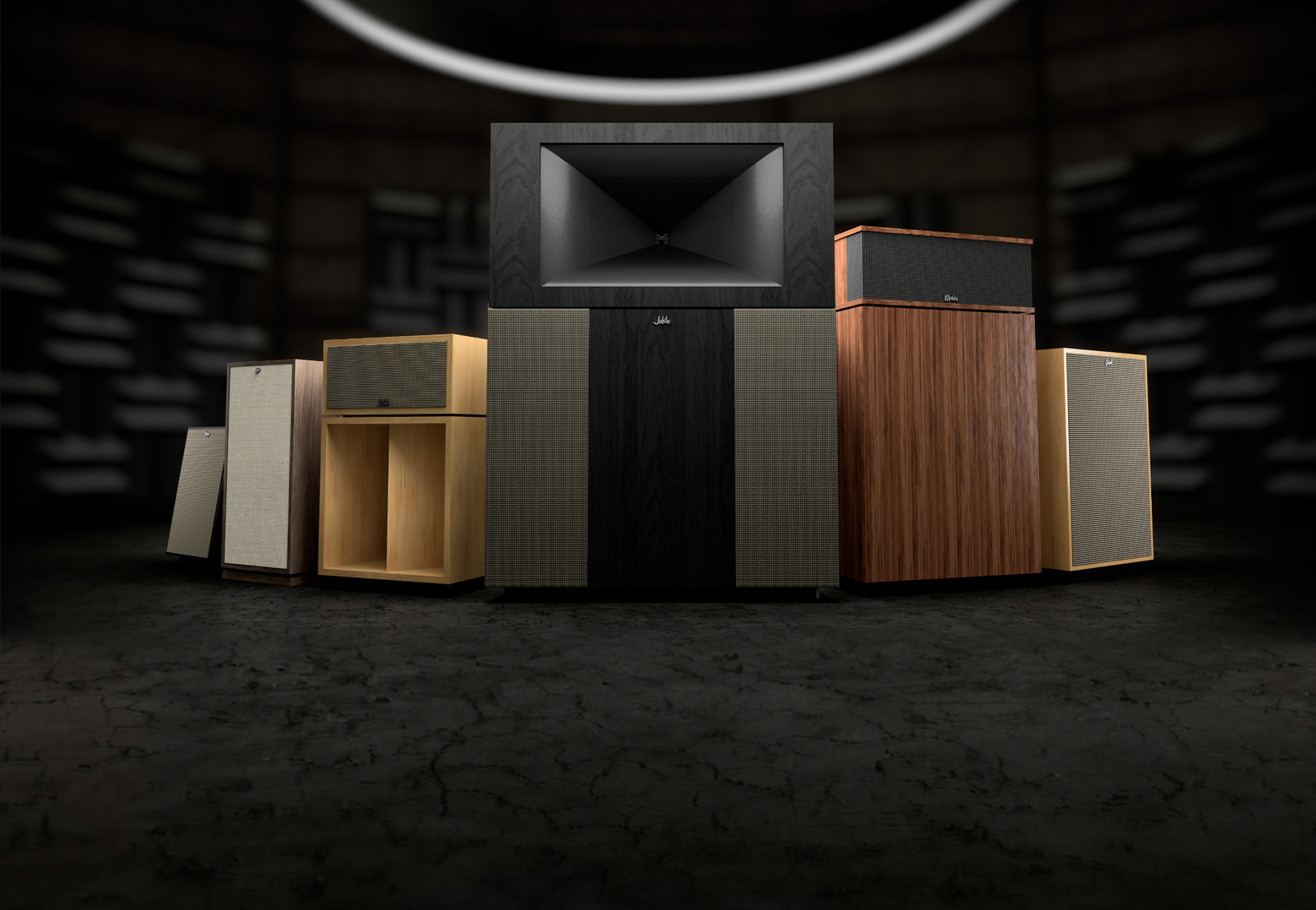

AMERICAN INGENUITY

The Klipsch Heritage Series is proudly designed and assembled in Hope, Arkansas, right where Paul W. Klipsch started it all back in 1946. Each speaker is built to order, meaning that every Heritage speaker is uniquely yours. You will want to pass these speakers onto future generations.



A NEW FLAGSHIP

You wanted the best, you got the best. The Klipsch Jubilee is taking its place as the new Heritage series flagship speaker.



Because Klipsch Heritage speakers are built to last, we stand behind a 10 year warranty on all current and future generations of Heritage Classic Speakers.


Specifications
GRILLESalt and Pepper Cloth
FINISH Black Ash, American Walnut
WEIGHTLF - 330 lbs (149.68 kg), HF - 78 lbs (35.38 kg)
DEPTH30.25” (76.2 cm)
WIDTH50.25” (127 cm)
HEIGHT69.5” (175.26 cm)
INPUTS5 way binding post
ENCLOSURE MATERIALMDF
LOW FREQUENCY DRIVERDual K-283 12” Fiber-Composite cone woofers
HIGH FREQUENCY DRIVERK-693 7” Titanium Diaphragm, Compression Driver with 5” Voice Coil
CROSSOVER FREQUENCY340 Hz
NOMINAL IMPEDANCELF - 8 ohms, minimum 3.5 ohms at 160Hz, HF - 16 ohms, miminum 7.6 ohms at 4.3kHz
MAXIMUM SPL125 dB/1m (Using DSP)
POWER HANDLING (CONT/PEAK)LF - 300W / 1200W, HF - 100W / 400W
SENSITIVITY1 Avg. Sensitivity of HF - 110dB, Avg. Sensitivity of LF - 107dB
FREQUENCY RESPONSE (+1.75 dB/- 3 dB)18Hz – 20kHz
