Discontinued

Klipsch Outdoor Subwoofer CA800TSW

Category : Outdoor Speakers
SKU : CA800TSW

$699.00 CAD

Put the finishing touches on any great commercial sound system with the CA-800-TSW all-purpose indoor/outdoor subwoofer. This compact and rugged passive subwoofer with an internal multi-tap transformer nicely complements the Klipsch CA Series and other small to medium-sized full-range speaker installations by adding high-impact robust bass.

Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass

Paintable UV-resistant ABS enclosure with rustproof aluminum grille

Supplied with C-style mounting bracket and stainless steel hardware

Building on the success of our popular CA-SW-8T model the new CA-800-TSW version features enhanced cosmetics added mounting flexibility and even better performance.

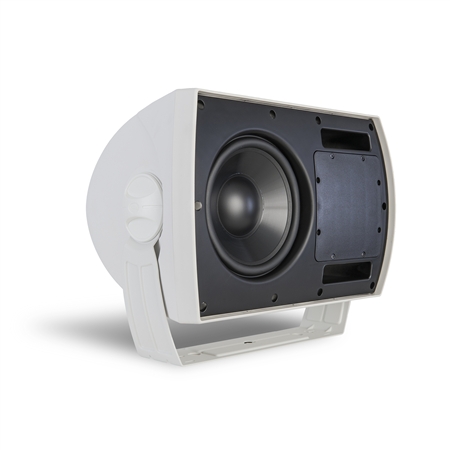

The re-voiced CA-800-TSW shakes things up and delivers a deep driving sound through an 8-inch long excursion driver that has a high-temperature voice coil attached to an IMG cone that is light weight and offers excellent rigidity and water resistance.

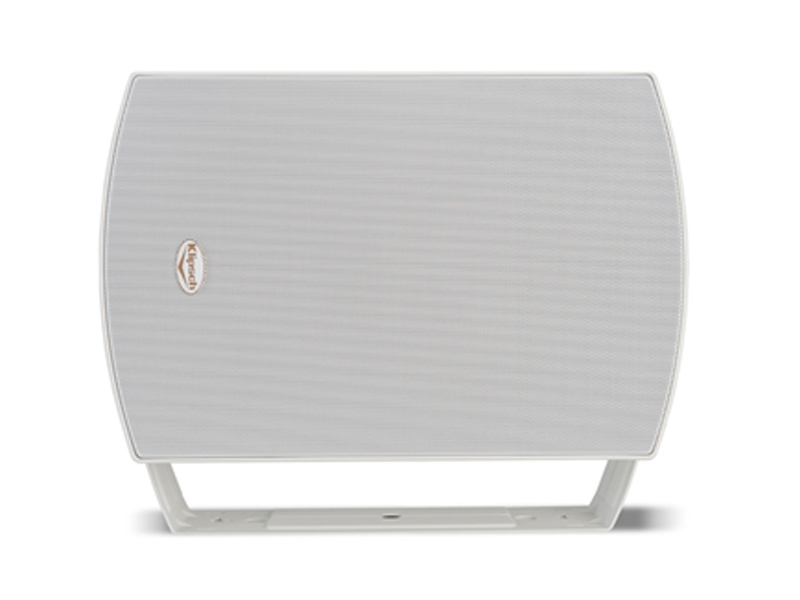

Available in black or white, this model has a durable UV-resistant all-weather enclosure and internal multi-tap transformer that allows 70-volt 100-volt or pass through 6 ohm operation. It also features a re-designed grille that stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment.

The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the enclosure's integral "center-of-gravity balanced" threaded studs that are positioned inside the speaker and to the oversized knobs ensuring positive position-lock.

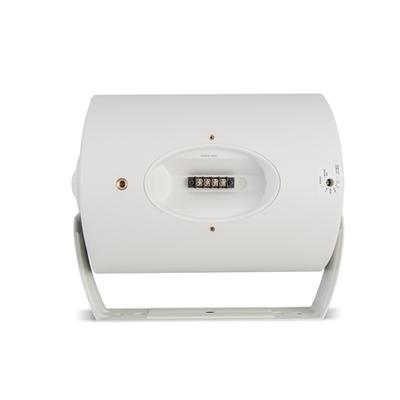

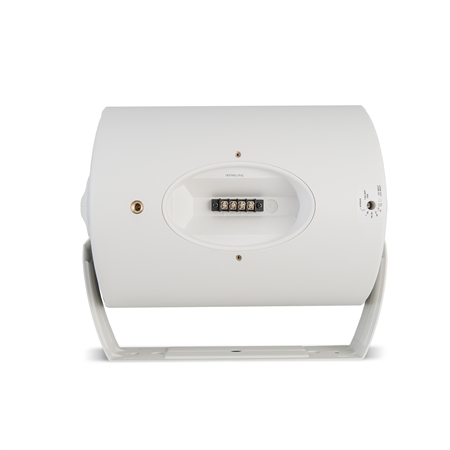

The CA-800-TSW's improved input cup allows for easier drainage and the added 3/8"-16 threaded inserts for use with optional mounts offers better placement flexibility.



Specification
FREQUENCY RESPONSE: 51Hz-135kHz ±4 dB -10dB 42Hz
SENSITIVITY: 92 dB
POWER HANDLING: 150W (25V)
MAXIMUM CONTINUOUS OUTPUT: 111 dB
NOMINAL IMPEDANCE: 6 Ohms (4 min @92Hz)
LOW FREQUENCY DRIVER: One K-1185-A 8" woofer IMG cone
CROSSOVER FREQUENCY: 12dB/Octave low-pass, 150Hz
ENCLOSURE MATERIAL: All-weather ABS Plastic paintable to match decor
ENCLOSURE TYPE: Vented System via port
INPUT CONNECTIONS: 4 pt terminal strip
DIMENSIONS: 11.125" (28.258 cm) H x 16.375" (41.533 cm) W x 12.313" (31.275 cm) D
TRANSFORMER TAPS: 60W, 30W, 15W, 7.5W, 3.75W
BUILT FROM: 2005
