Klipsch Designer Series 6.5″ In-Wall Speaker DS160W

Category : In-Wall Speakers
SKU : DS160W

$239.00 CAD

Literature

DS-160W

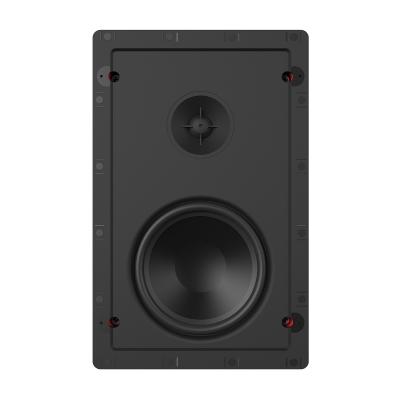

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160W features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.

Features:

  • 6.5” Polypropylene woofer
  • 1” Silk Dome tweeter
  • Patent-Pending SkyHook™ Tool-Free Installation System
  • Bezel-Free Magnetic Grille

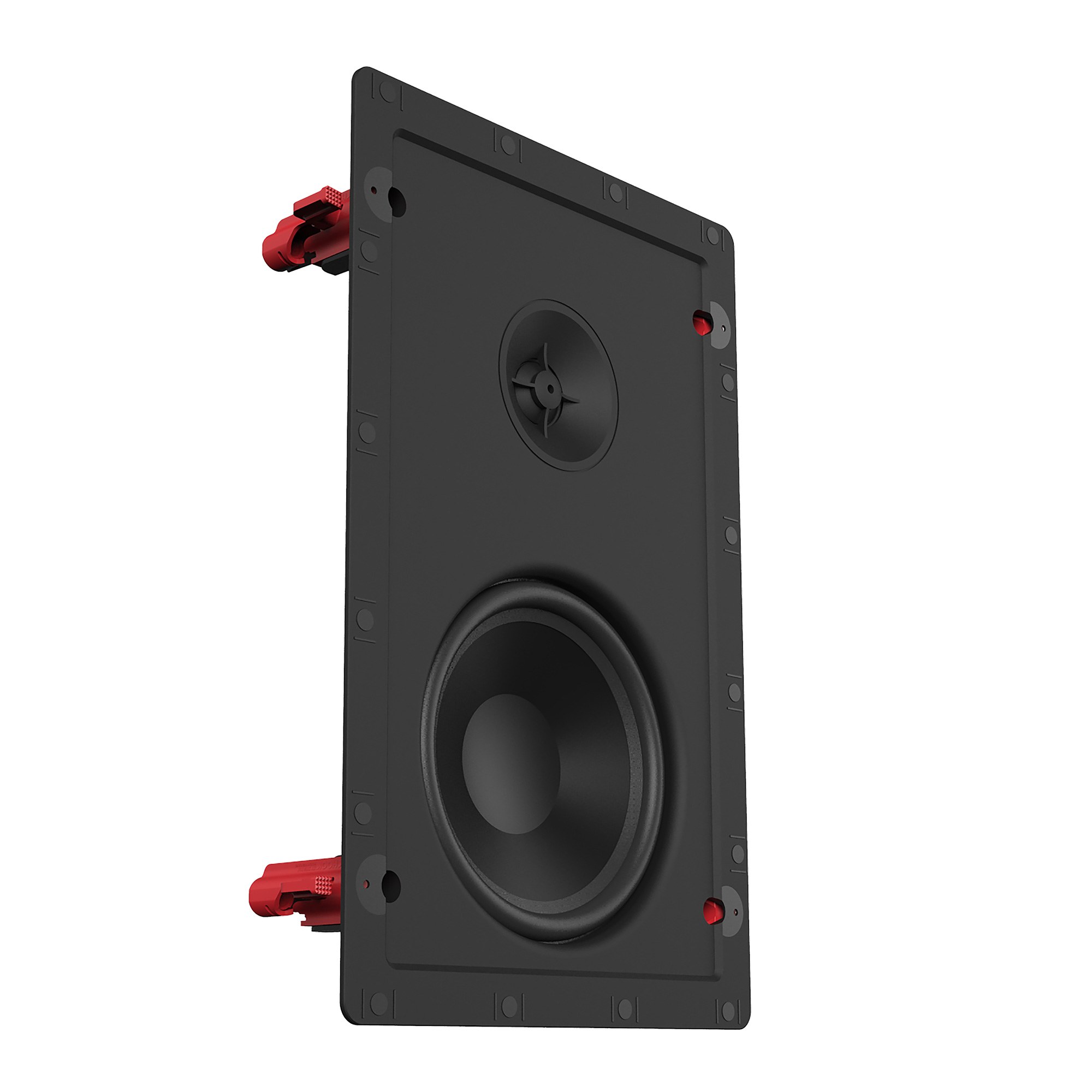

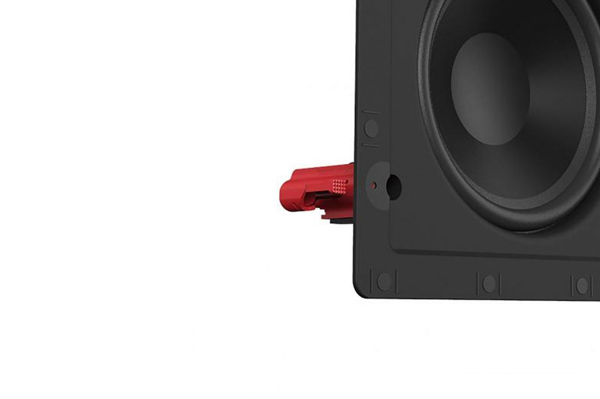

SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM

The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

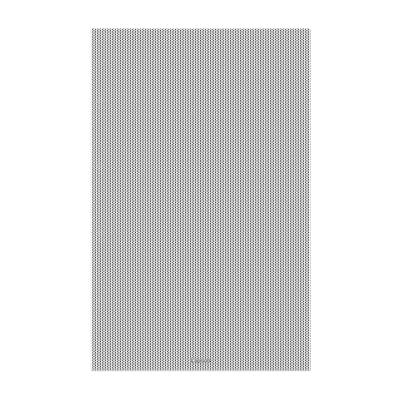

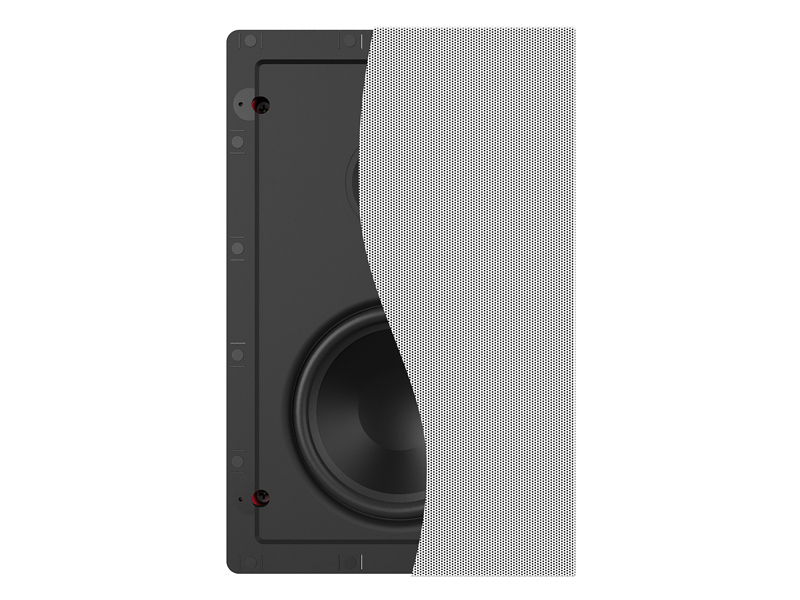

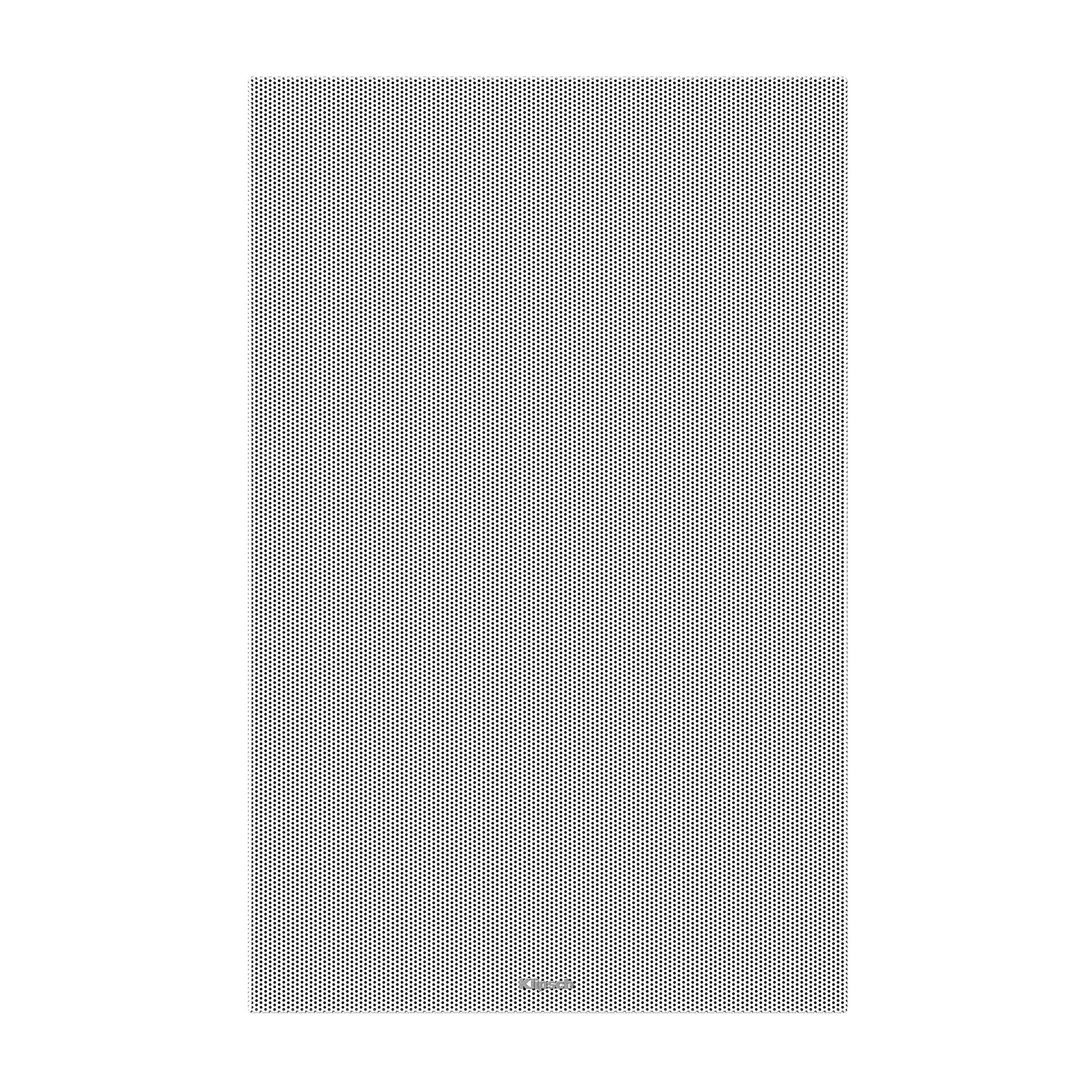

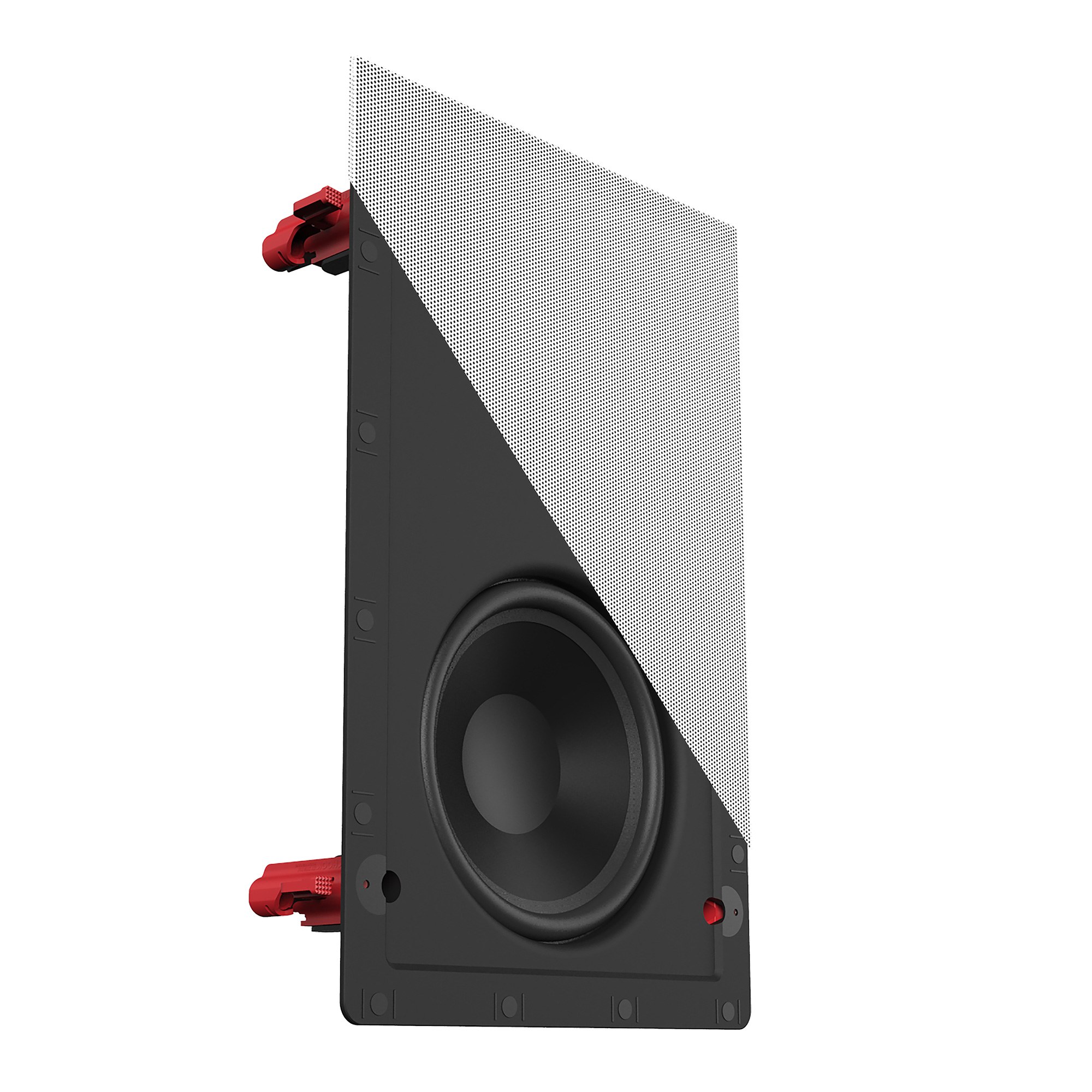

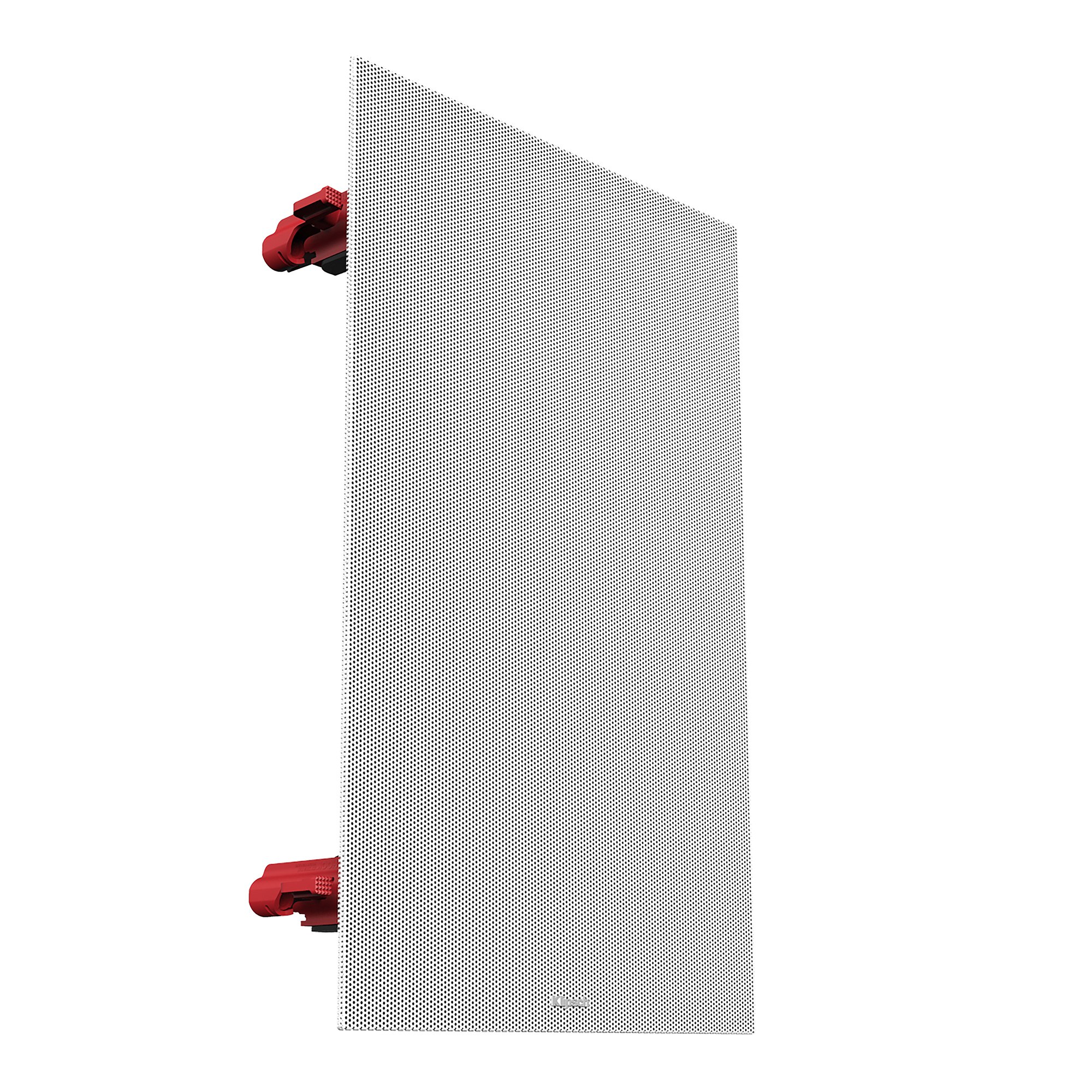

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

HORN-LOADED PERFORMANCE

Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.

Specifications
Frequency Range 77Hz - 20kHz +/- 3dB
High Frequency Driver 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver 6.5” (16.51cm) Polypropylene Woofer
Sensitivity 91 dB @ 2.83V / 1m
Coverage Angle 100°
Power Handling 50W RMS / 200W RMS
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
Mounting Depth 3.78” (9.6cm)
Cutout Dimensions 13” H X 8” W (33.0cm H X 20.3cm W)
Product Weight 7.2lbs (3.25kg)
Included Magnetic Grille
Installation Kit IK-650-W II (Sold Separately)
Fire Rated Enclosure ME-650-W (Sold Separately)
Built From 2017
