Klipsch Pro-Series Architectural In-Wall Speaker PRO16RW

Category : In-Wall Speakers
SKU : PRO16RW

$419.00 CAD

PRO-16RW

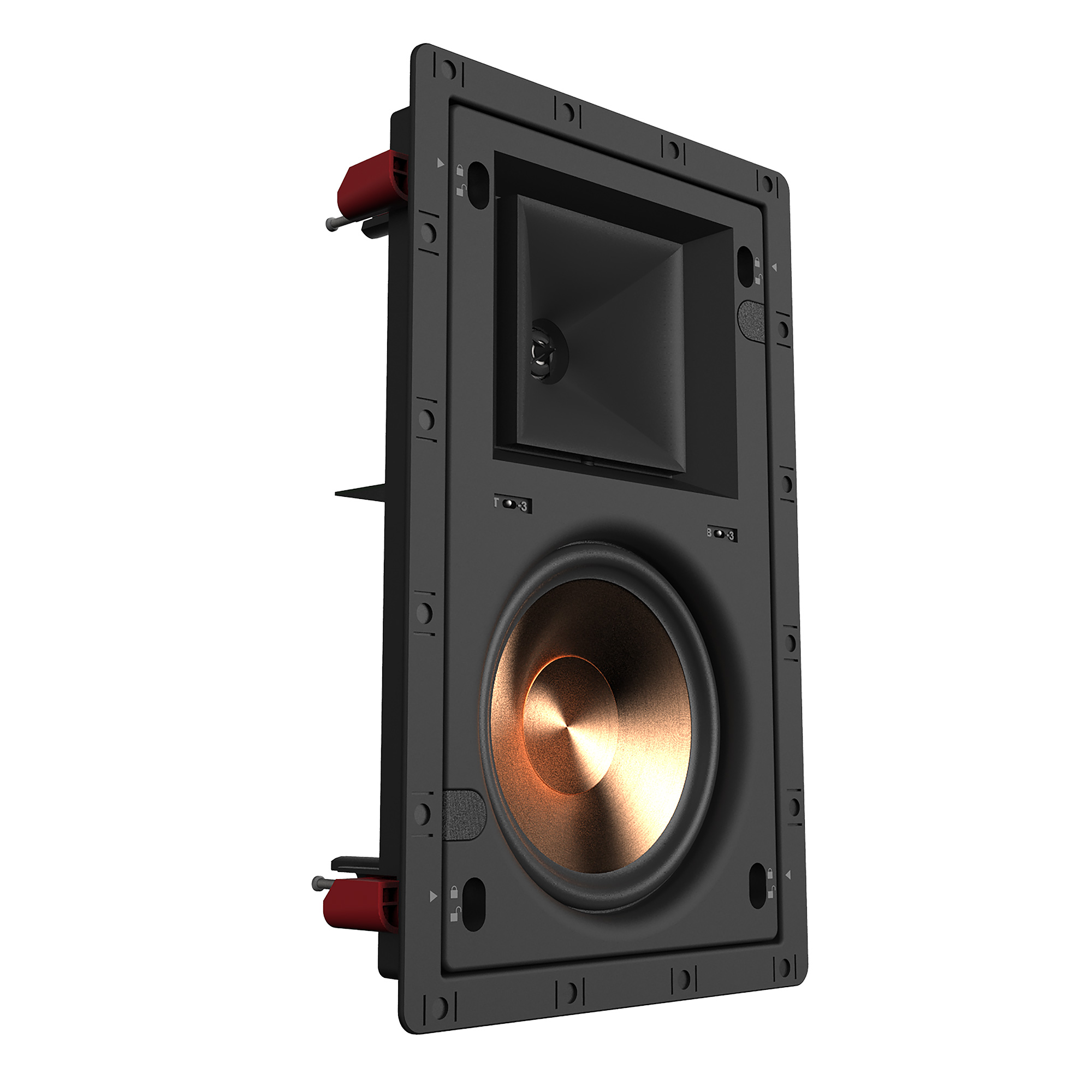

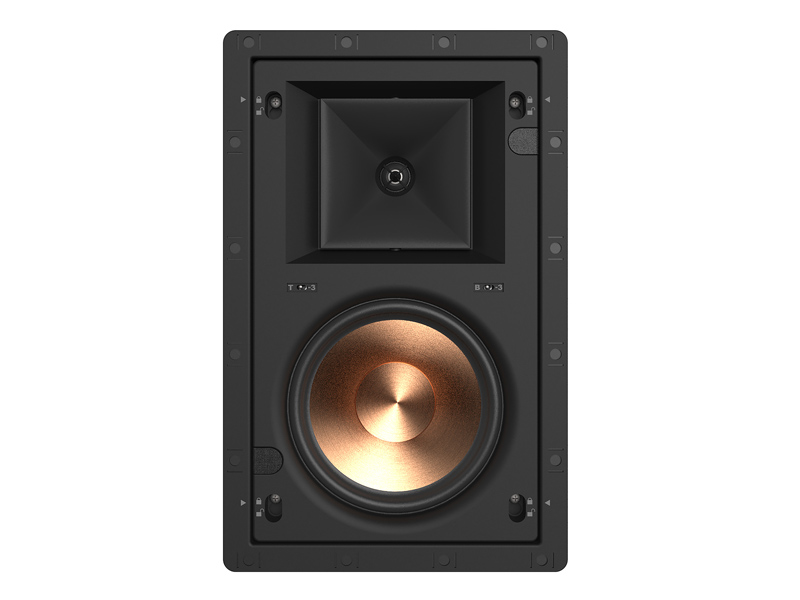

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Features:

  • 6.5” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

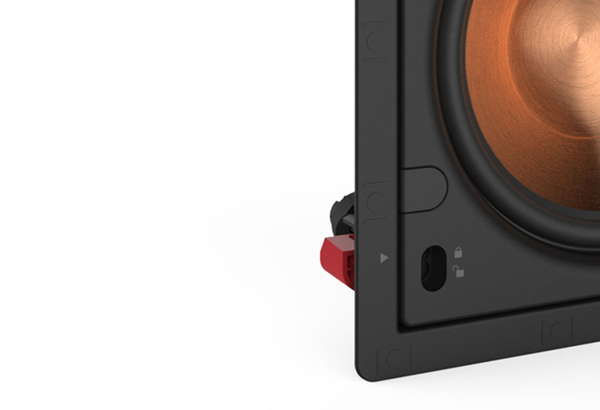

SECUREFIT™ INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

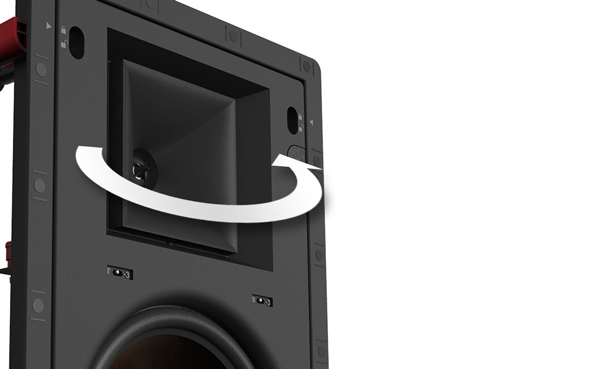

CONTROLLED DISPERSION™ TECHNOLOGY

Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

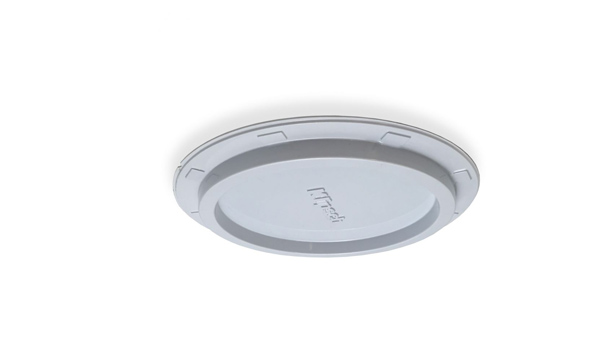

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Specifications
Frequency Range 63Hz - 23kHz +/- 3dB
High Frequency Driver 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency Driver 6.5" (16.51cm) IMG Woofer
Sensitivity 93 dB @ 2.83V / 1m
Coverage Angle 90° x 90°
Power Handling 50W RMS / 200W Peak
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.0” W x 14.1” H x 3.9” D (22.8cm W x 35.8cm H x 9.8cm D)
Mounting Depth 3.78” (9.6cm)
Cutout Dimensions 13” H X 8” W (33.0cm H X 20.3cm W)
Product Weight 7.2lbs (3.25kg)
Included Flat Magnetic Grille, Paint Shield
Installation Kit IK-650-W II or IK-650-W (Sold Separately)
Fire Rated Enclosure ME-650-W (Sold Separately)
Built From 2017
