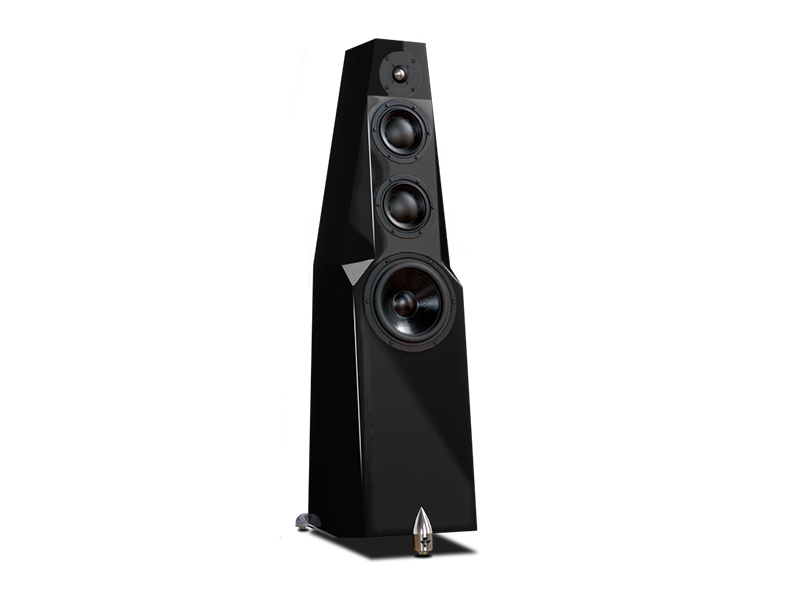

Totem Acoustic Superior Sonic Architecture Speaker - Wind Design (D)

Totem Acoustic Superior Sonic Architecture Speaker - Wind Design (W)

Totem Acoustic Superior Sonic Architecture Speaker - Wind Design (D)

SKU : Wind Design (D)
SKU: Wind Design (W)
SKU: Wind Design (D)

$19,000.00 CAD
$19000
$19000

Literature

Going a step further than the original Wind Floorstanding, the Wind Design is refined to the highest sonic tolerances. With its hand-selected drivers and exclusive crossover components, the Wind Design offers ultra-broad all-axis sound staging performance. Designed like a musical instrument, the Wind Design delivers sonic expressivity to the absolute, pulling you inside the music.

Dressed for uncompromising musical renditions, the Wind Design’s six-layer multicoated finishes results in additional structural rigidity. The deep luster finish not only adds shine but also allows for a more cohesive acoustic behavior. At the base of the front baffle is a new articulating claw that is adjustable for slanting back the baffle for precise spatial alignment. The rear skid-plate decoupling system allows for additional spatial performance.

Design features

  • Avant-garde design
  • Superior sonic architecture
  • Complex cabinet geometry
  • Absolute surreal holographic imaging
  • Design 6-layer multicoated polyester design finishes

Technical features

  • Exclusive (4x) driver 3-way speaker system
  • On- and off-axis point source imaging
  • Specially damped, long-throw woofer
  • Special low resonance tweeter with chamber
  • Multiple midranges
  • Extreme-quality hard-wired crossover
Specifications
Break-in Time:200 - 250 hours
Placement from rear wall:3' - 7' / 91.44 - 213.36 cm
Placement distance apart:6' - 14' / 182.88 - 426.72 cm
Frequency Response:24 Hz - 21 kHz ± 3 dB (in room)
Impedance:4 ohms
Sensitivity:87 dB
Recommended Power:80 - 250 W
Crossover Frequency:Woofer to mids, 2nd order / 2nd order Mids to tweeter, 2nd order / 2nd order
Woofer: 8.5" / 21.59 cm cast frame, specially damped. High power handling. Long throw characteristics.
Mid-Woofers (2): 3" / 7.62 cm voice coil. Cast frame. High power handling. Wrap-around neodymium magnet structure. Accurate linear throw.
Tweeter: 1" / 2.54 cm alloy dome flexible linear suspension. Special low resonance tweeter with chamber.
Max SPL's:In average room (12' x 20' / 4 x 6 m) 114 dB peak from pair at 7' / 2 m
Dimensions (w x h x d):10.7" x 44.3" x 14" / 27.18 x 112.522 x 35.56 cm (over max. size)
