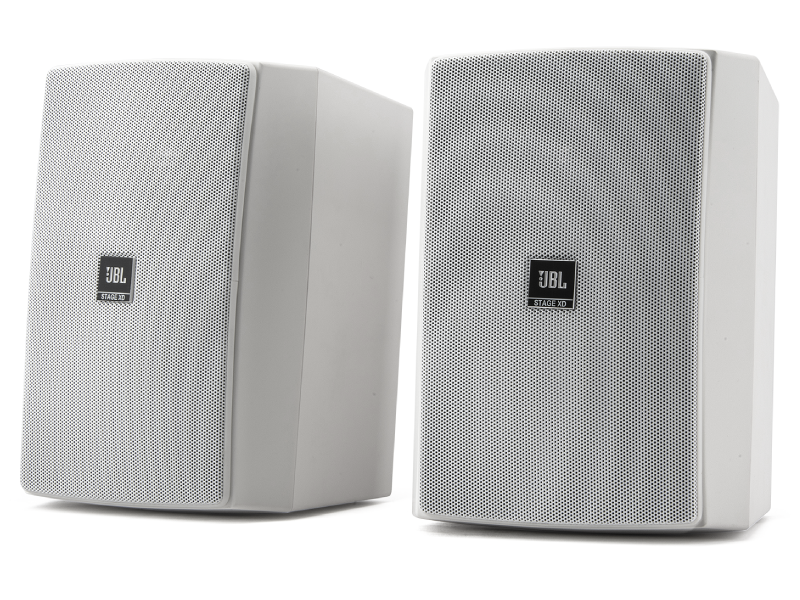

JBL Stage XD-5 2-Way 5.25" Indoor/Outdoor All Weather Loudspeaker in White - JBLXD5WHT
You may also like

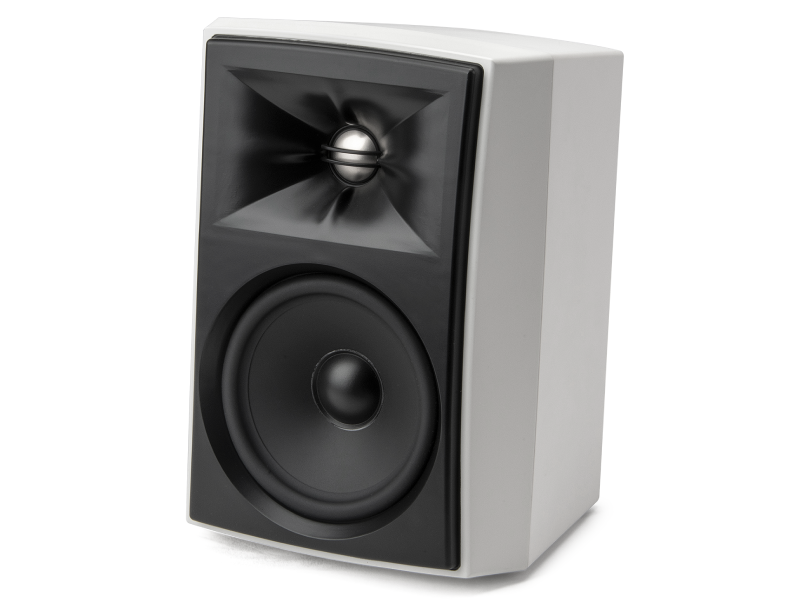

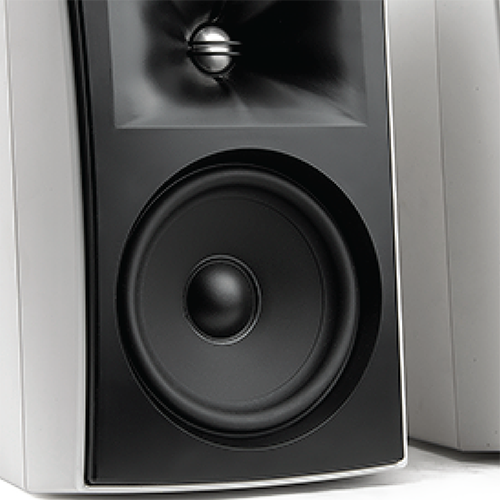

Featuring a 5.25" (130mm) Polypropylene Graphite Filled Cone Woofer and a 1” (25mm) Aluminum tweeter with an acoustic lens and HDI™ waveguide, the Stage XD-5 all-weather speaker is perfect for an outdoor location when protection from the weather is a requirement. Stylish design and mounting flexibility make it equally at home indoors in a variety of applications. Elements including acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

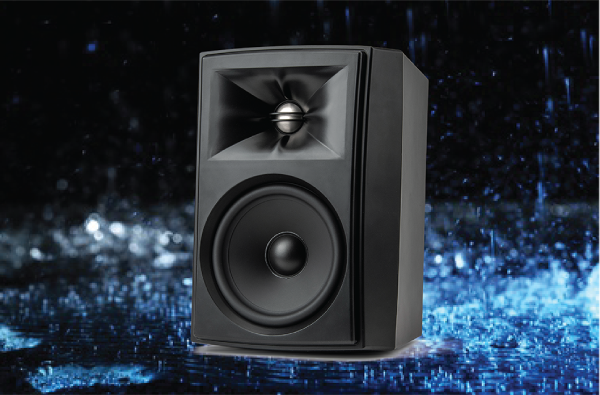

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

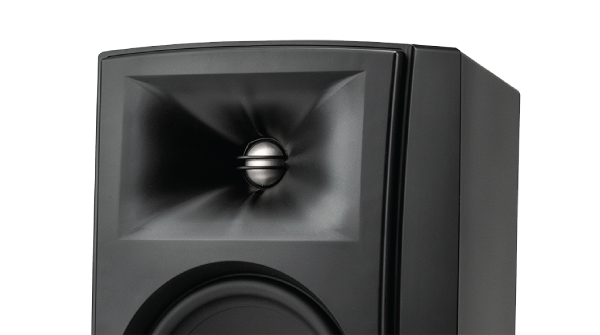

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

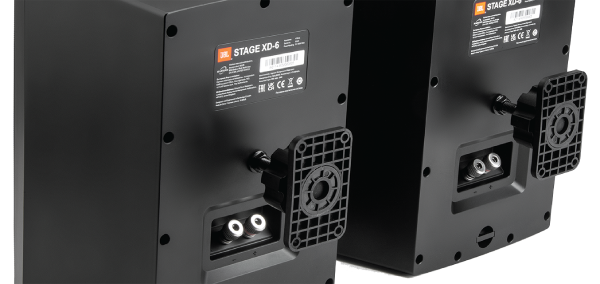

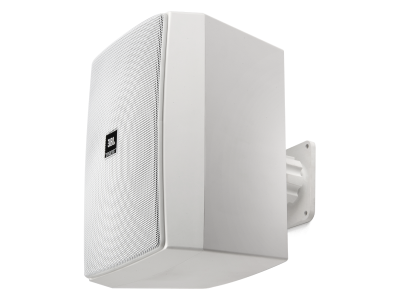

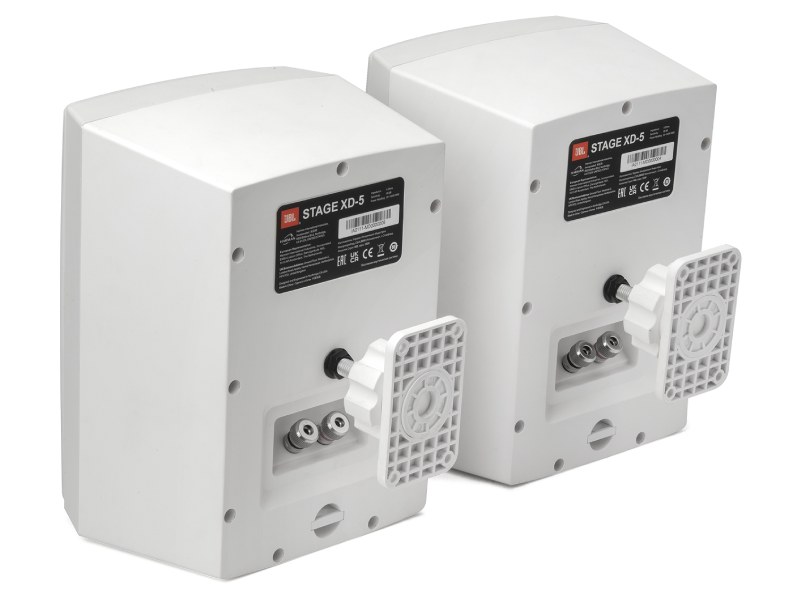

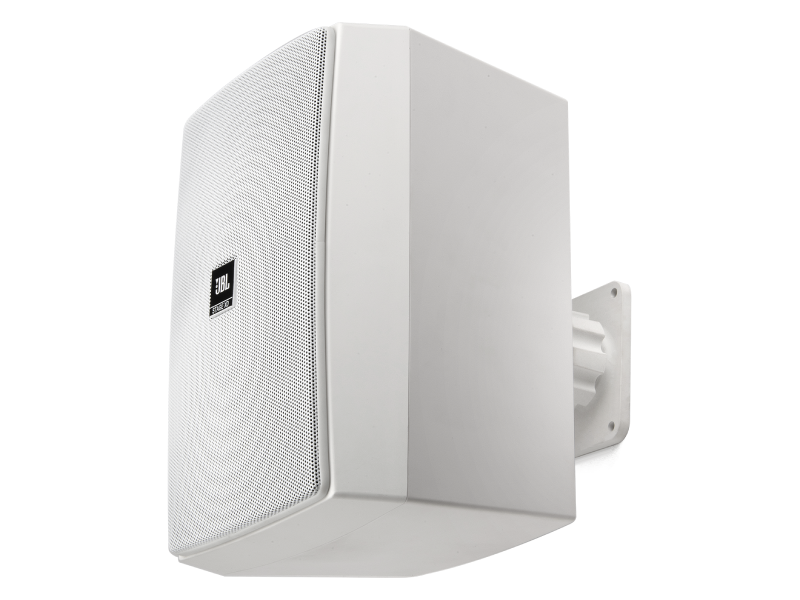

Included wall-mount bracket allows for easy installation and angle adjustment
Features
Polypropylene Graphite Filled Cone Woofer

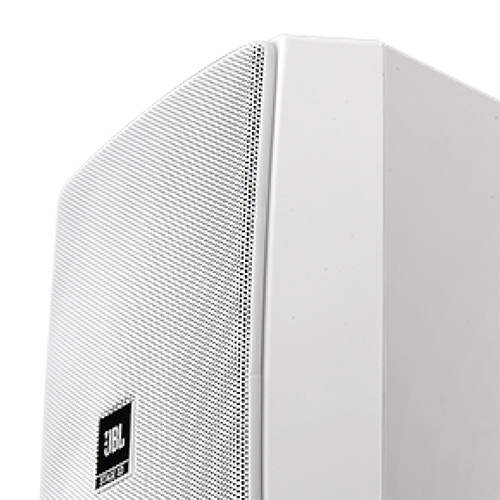

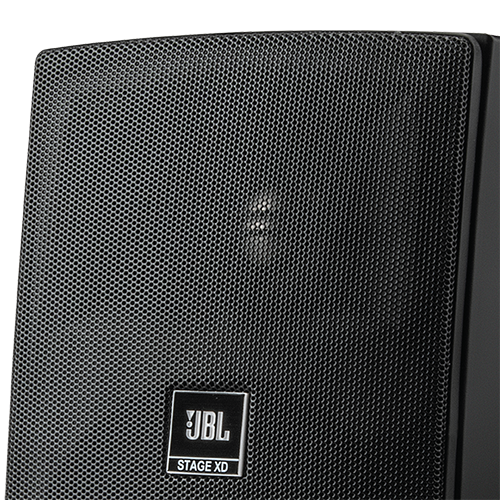

Zero bezel magnetically attached grilles
Rotatable logo for horizontal and vertical applications
| General Specifications | |
|---|---|
| Product Type | 2-way 5.25" (130mm) Indoor/Outdoor All Weather Loudspeaker |
| Weatherproof Rating | IP67 |
| High Frequency Transducer | 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide |
| Low Frequency Transducer | 5.25" (130mm) Polypropylene Cone Woofer |
| Nominal Impedance | 6 ohms |
| Sensitivity (2.83V@1m) | 86dB |
| Recommended Amplifier Power | 20-100W RMS |
| Frequency Response (-6dB On-Axis) | 75Hz-25kHz |
| Crossover Frequency | 2500K |
| Operating Temperature | -31° F (-35° C) to 167° F (75° C) |
| Product Dimensions (HxWxD) | 9.9in (250.0mm) x 7.0in (179mm) X 6.4in (162mm) |
| Product Weight | 2.3lbs (5kg) |
| Wall Mount Extension | 2.8in (71mm) |
| Beauty Carton Dimensions (HxWxD) | 12.6in (320mm) x 16.4in (416mm) X 10.1in (256mm) |
| Beauty Carton Weight | 12.2lbs (5.5kg) |
| Beauty Carton Quantity | 1pr |
| Master Carton Dimensions (HxWxD) | 13.4in (340mm) x 31.1in (788mm) X 17.0in (430mm) |
| Master Carton Weight | 37.5lbs (17kg) |
| Master Carton Quantity | 3pr |
